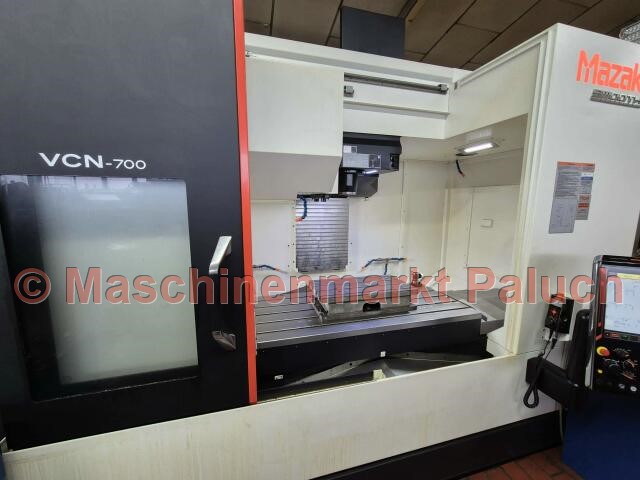

MAZAK VCN 700
Inventory Number
1708
Machine Type
CNC-Machining Center – Vertical
Year of Construction
2024
Control

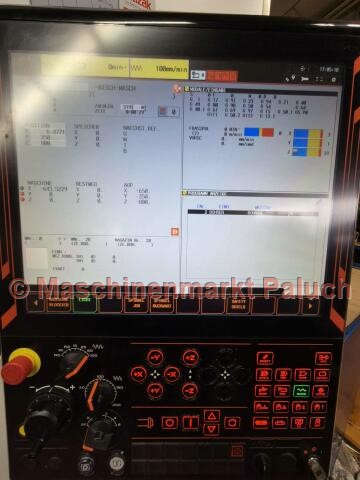

Mazatrol SmoothG
Technical data

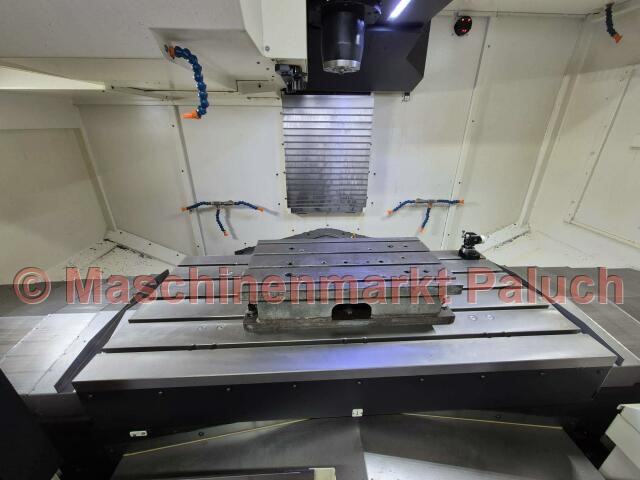

Worktable
Table size
700 x 1.500
mm
Max. table load
1.800
kg
T-slots
5
count
T-slot spacing
125
mm
Slot width
18
mm
Travel
X-axis stroke
1.300
mm
Y-axis stroke
700
mm
Z-axis stroke
650
mm
Feedrate
Rapid traverse rate:
X/Y/Z-axis
42
m/min
X/Y/Z-axis
1 - 42.000
mm/min

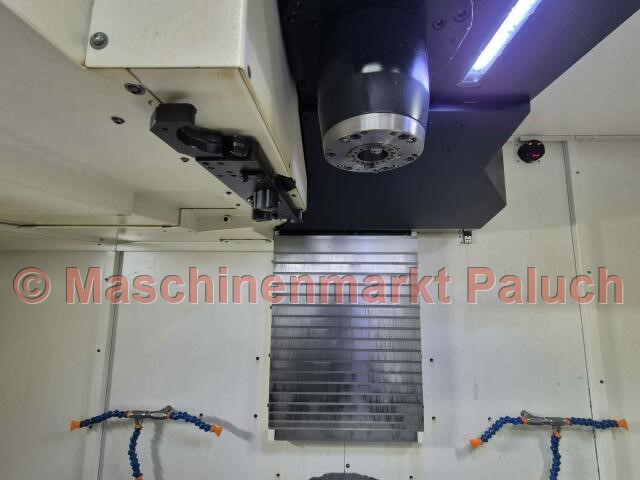

Spindle
Spindle speed
40 - 18.000
RPM
Tool shank
SK 40
Main spindle motor
30
kW
Max. torque
120
Nm
Tool magazine
Turret tool capacity
30
max. tool diameter
80
mm
Max. tool diameter with adjacent tool pockets empty
125
mm
Max. tool length
350
mm
Max. tool weight
8
kg
Machine-data
Electrical power supply
30
KVA
Machine weight
9.000
kg
Machine size (L x B x H), approx.
3,40 x 3,70 x 3,10
m
Accessories
Normal equipment
- Complete coolant system
- Cooling through the spindle
- Coolant and chip protection
- Protection of chips and coolants by fully encapsulated workspace
- Workspace lighting
- MAZAK Threaded Drilling/Drilling Cycle Tornado (Mazatrol)
- MAZAK Threaded Drilling/Drilling Cycle Tornado (EIA/ISO)
- EIA/ISO input function
- Optional stop (optional stop)
- Tool testing in the background
- MAZACC-2D Software
- MAZACC-3D Software
- Thread cutting function (G33)
- EIA/ISO drilling cycles
- Compact Flash Memory Interface
- USB port
- Active vibration control
- Intelligent heat shield
- Documentation
Optional equipment
- Coolant package 3 (MAYFRAN), package contents:
- Flood cooling 20 bar
- Cooling through the milling spindle 20 bar
- Flushing system for the cover
- MAYFRAN chip conveyor, side discharge
- Spindle speed 18,000 rpm
- Signal light (3-color LED)
- Oil mist filter
- Air package Milling spindle
- Synchronized thread cutting
- Engraving function
