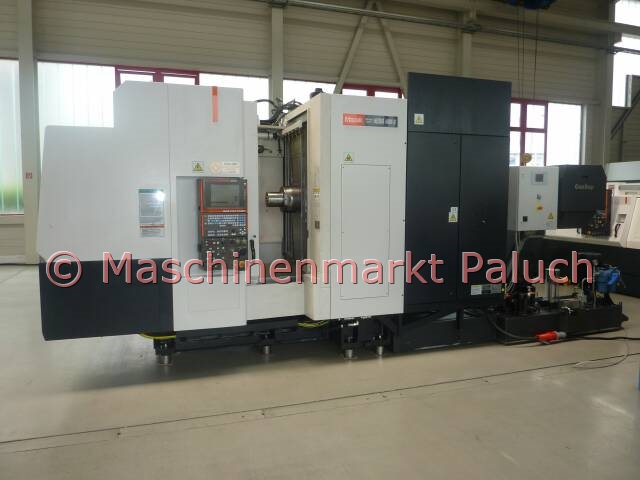

MAZAK HC Nexus 4000-II
Inventory Number
1299
Machine Type
CNC-Machining Center – Horizontal
Year of Construction
2009
Control
Mazatrol Matrix Nexus
Technical data
Worktable
Table size
400 x 400
mm
Max. table load
400
kg
Max. Workpiece size
630 X 900
kg
positioning table
0,001° x 360.000
°/min
Travel
X-axis stroke
560
mm
Y-axis stroke
630
mm
Z-axis stroke
640
mm
Feedrate
Rapid traverse rate:
X-axis
60
m/min
Y-axis
60
m/min
Z-axis
60
m/min
Distance from spindle nose to table top
70 ~ 710
mm
X/Y/Z-axis
1- 60.000
mm/min
Spindle
Spindle speed
35 - 18.000
RPM
Main spindle motor
30
kW
Max. torque
168
Nm
Tool shank
CAT 40
Tool magazine
Turret tool capacity
80
max. tool diameter
95
mm
Max. tool diameter with adjacent tool pockets empty
150
mm
Max. tool weight
12
kg
Machine-data
Electrical power supply
64
KVA
Machine weight
9.500
kg
Machine size (L x B x H), approx.
4,50 x 2,20 x 2,80
m
Accessories
Normal equipment
- 1° x 360 Positions Index – Table
- 2-pallet changer
- Safety cover for 2-pallet changer
- Fully automatic tool setting
- Coolant System
- coolant through spindle
- Niagara coolant system
- Spindle chiller unit
- MAZAK Monitoring System C
- PCMCIA Interface
- IC memory card
- 3.5 inch floppy disk
- autom. door open/close
- Machine work light
- Manuals
- Optional-equipment:
- NC rotary table 0,001° x 360.000 Positions
- Work air blast
- preparation for high-pressure coolant through spindle system 70 bar
- CNC options-package Performance
- tapping tornado (EIA/ISO)
- high-speed synchronized tapping
- EIA/ISO input
- EIA/ISO spiral interpolation
- constant acceleration in G00
- EIA/ISO code programs
- MAZACC – 2D
- Interface Set (Interface for Keyboard, mouse)
- MAZAK Monitoring system B, Renishawsystem
- preparation for MAZAK Monitoring system B
- removable handwheel for 3 axis
Optional equipment
- Tool magazine for 80 tool places
- Main spindle version as BIG-Plus
- Pallets as centering and threaded holes
- Drilling cycle with torque-dependent chip break
- Synchronized tapping by rotary tool
- Factory preparation for monitoring B system
- NC positioning table 0.001 °
- Additional M codes
- Factory preparation for high pressure cooling by the spindle up to max. 70 bar
- MAYFRAN ConSep 2000-II system consisting of: chip conveyor, high pressure cooling 70 bar, 7 pressure levels and double switching filter
