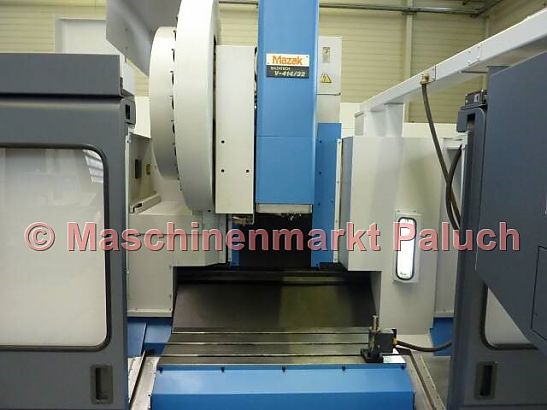

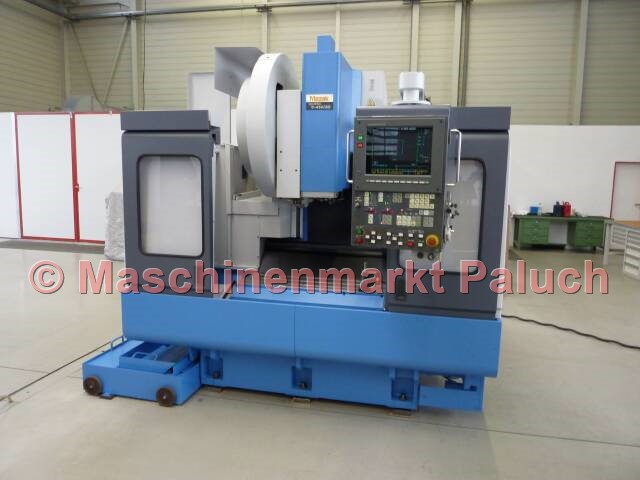

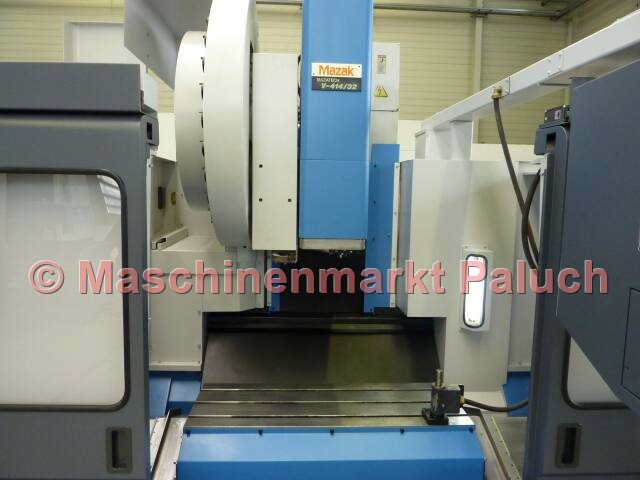

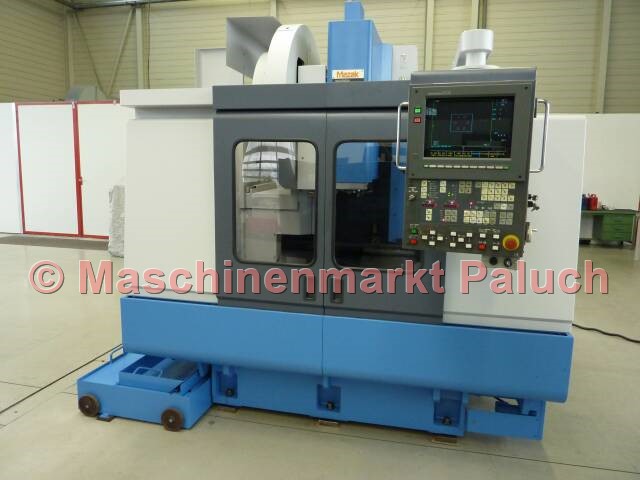

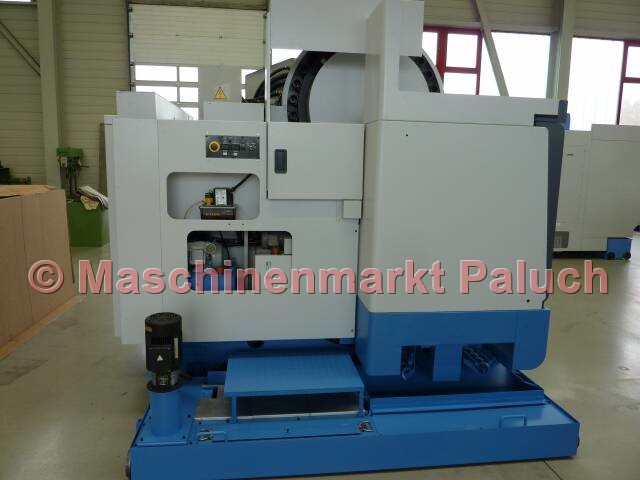

MAZAK Mazatech V – 414/32
Inventory Number
1471
Machine Type
CNC-Machining Center – Vertical
Year of Construction
1995

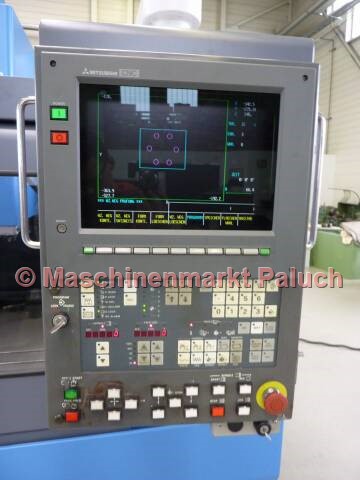

Control
Mazatrol M-32
Technical data

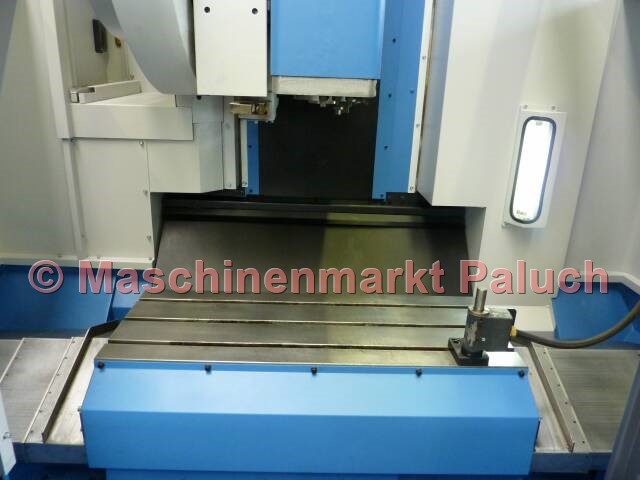

Worktable
Table size
1.100 x 410
mm
Max. table load
500
kg
T-slots
3
count
T-slot spacing
125
mm
Slot width
18
mm
Travel
X-axis stroke
813
mm
Y-axis stroke
410
mm
Z-axis stroke
460
mm
Feedrate
Rapid traverse rate:
X-axis
24
m/min
Y-axis
24
m/min
Z-axis
18
m/min
Cutting feed rate
1 - 8.000
mm/min
Distance from spindle nose to table top
150 ~ 610
mm
Spindle
Spindle speed
50 - 7.000
RPM
Tool shank
CAT 40
Main spindle motor
7,5
kW
Max. torque
96
Nm
Tool magazine
Turret tool capacity
30
max. tool diameter
100
mm
Max. tool diameter with adjacent tool pockets empty
160
mm
Max. tool length
350
mm
Max. tool weight
10
kg
Machine-data
Electrical power supply
22
KVA
Machine weight
6.450
kg
Machine size (L x B x H), approx.
3,20 x 2,80 x 2,50
m
Accessories
Normal equipment
- EIA/ISO programming-function
- MAZAK Monitoring system C
- Fully automatic tool setting
- complete coolant system
- spindle cooling unit
- Interface for MAZAK Micro Disk and MSK
- Work light
- Manuals
Optional equipment
- 30-tool magazine
- High-pressure coolant through the spindle
- synchronized tapping
- preparation for Mazak Monitoring system B
