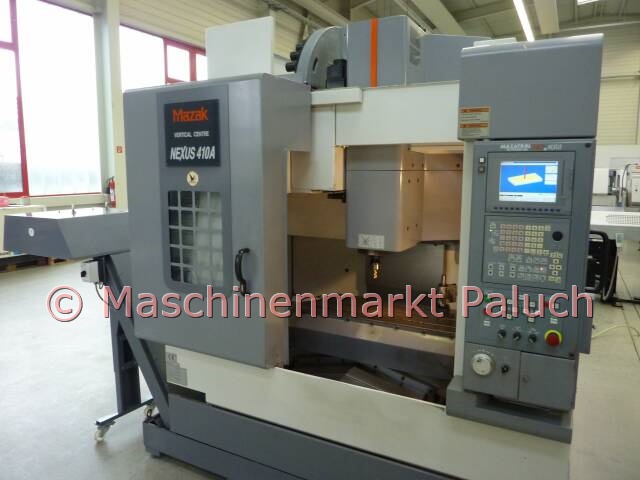

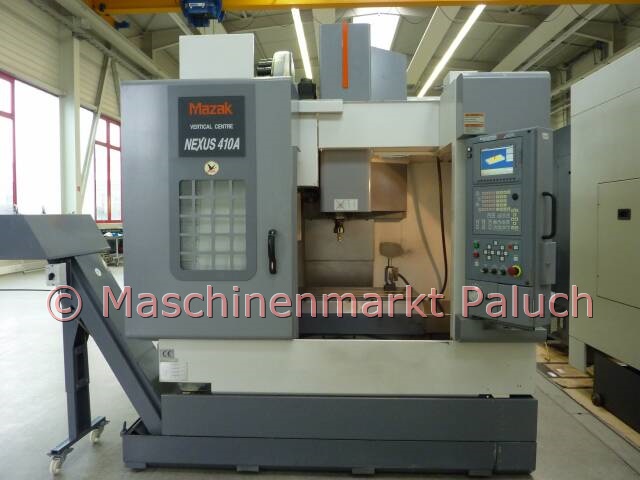

MAZAK VC Nexus 410A
Inventory Number
1390
Machine Type
CNC-Machining Center – Vertical
Year of Construction
2003
Control

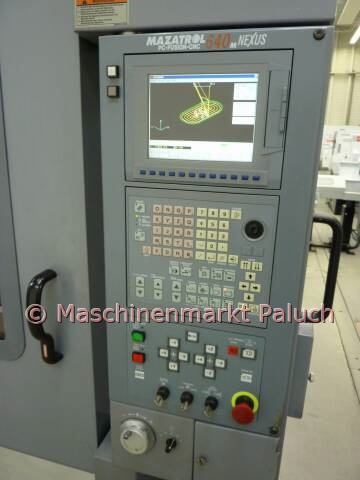

Mazatrol PC Fusion CNC 640M Nexus
Technical data

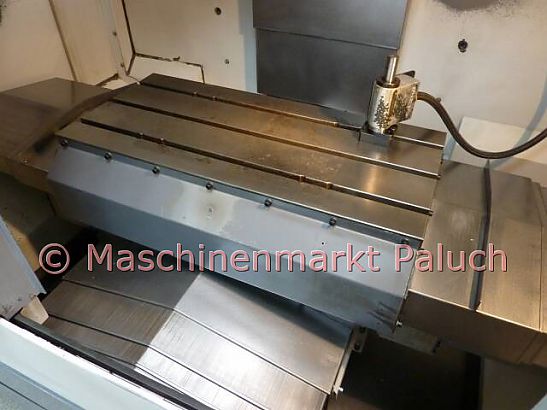

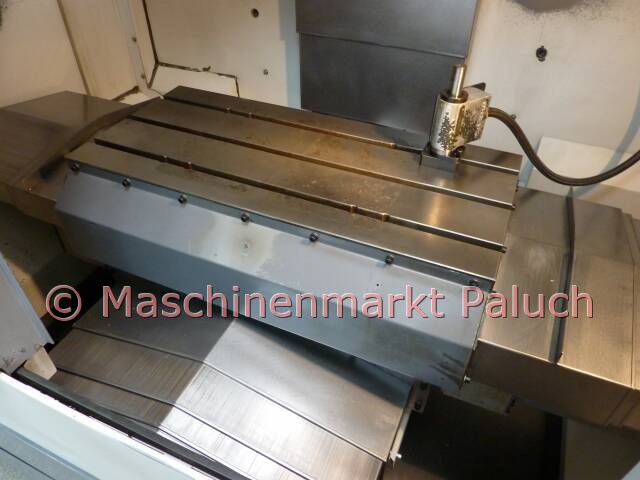

Worktable
Table size
900 x 410
mm
Max. table load
500
kg
T-slots
3
count
T-slot spacing
125
mm
Slot width
18
mm
Travel
X-axis stroke
560
mm
Y-axis stroke
410
mm
Z-axis stroke
510
mm
Feedrate
Rapid traverse rate:
X/Y/Z-axis
36
m/min
Cutting feed rate
1 - 8.000
mm/min
Spindle
Spindle speed
35 - 12.000
RPM
Tool shank
CAT 40
Main spindle motor
18,5
kW

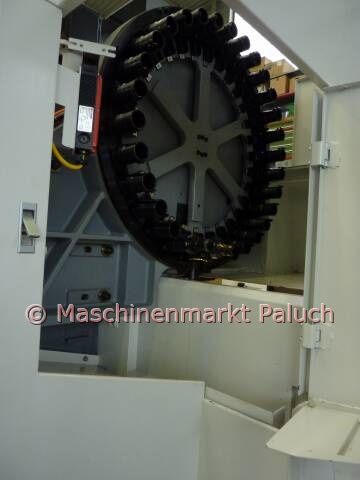

Tool magazine
Turret tool capacity
30
max. tool diameter
80
mm
Max. tool diameter with adjacent tool pockets empty
125
mm
Max. tool length
350
mm
Max. tool weight
8
kg
Machine-data
Electrical power supply
27,8
KVA
Machine weight
4.920
kg
Machine size (L x B x H), approx.
2,00 x 2,60 x 2,80
m
Accessories
Normal equipment
- MAZAK Monitoring system C
- Fully automatic tool setting
- Machining navigation
- PCMCIA Interface
- Coolant System
- Work light
- Manuals
Optional equipment
- CNC options-package Performance
- Drilling cycle
- MAYFRAN chip conveyor
