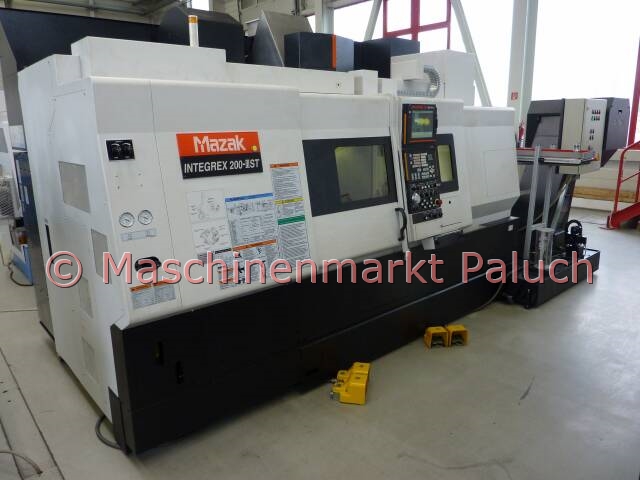

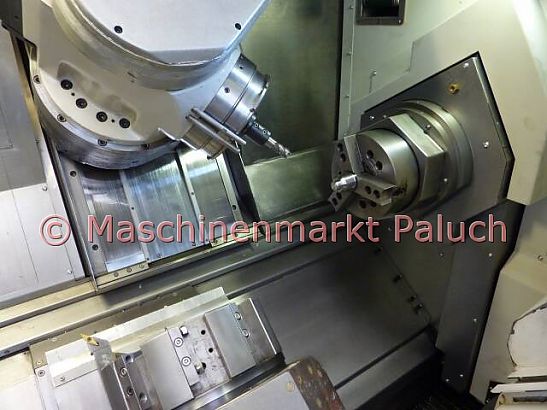

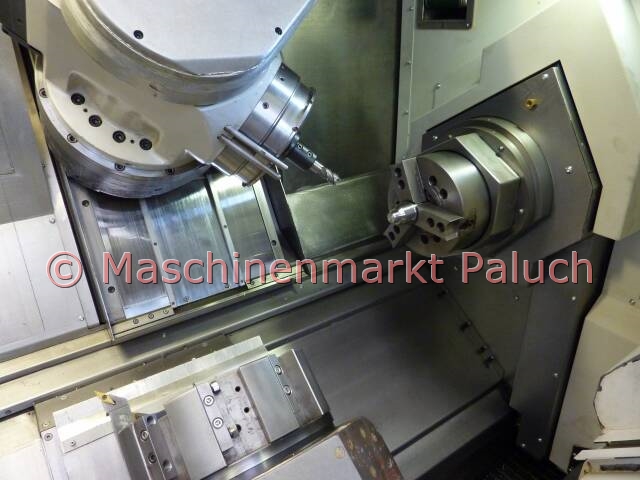

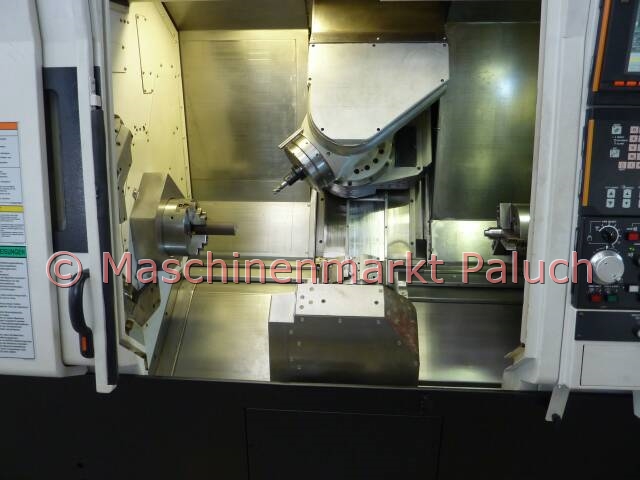

MAZAK Integrex 200 III ST x 1000
Inventory Number
1395
Machine Type
CNC-Lathe
Year of Construction
2005
Control

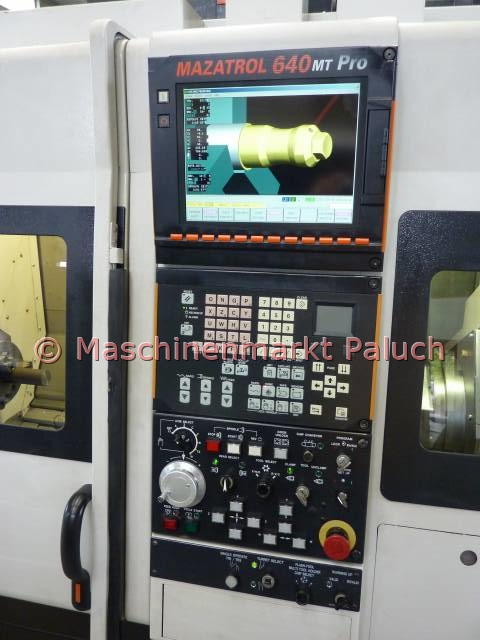

Mazatrol PC Fusion CNC 640MT Pro
Technical data
Work-capacity
Max. swing diameter
660
mm
Max. machining diameter
660
mm
Max. bar material diameter
64
mm
Main-spindle
Spindle speed
35 – 4.000
RPM
Main spindle motor
22
kW
Max. torque
349
Nm
Spindle nose
A2 – 6
''
Spindle indexing increments
0,0001
°
Second-spindle
Spindle speed
35 – 5.000
RPM
Power
18,5
kW
Max. torque
326
Nm
Spindle indexing increments
0,0001
°
Rotary tools
Rotary tool spindle speed
15 – 12.000
RPM
Power
15
kW
Max. torque
120
Nm
Tool Receiver
CAPTO C6
Tool magazine
Turret tool capacity
40
Max. tool weight
10
kg
max. tool diameter
90
mm
Max. tool diameter with adjacent tool pockets empty
125
mm
Max. tool length
300
mm
Lower Turret
Turret tool capacity
9-fach/18 Positionen
Travel
X-axis stroke
580
mm
X2-axis stroke
150
mm
Z-axis stroke
1.045
mm
Z2-axis stroke
1.010
mm
Y-axis stroke
+/- 80
mm
W-axis stroke
1.050
mm
B-axis stroke
-30° bis +195°
mm
Feedrate
Rapid traverse rate:
X/X2-axis
38
m/min
Z/Z2-axis
38
m/min
Y-axis
26
m/min
W-axis
26
m/min
C-axis
400
RPM
Cutting feed rate
X/X2/Y/Z/Z2-axis
0 - 8.000
mm/min
Machine-data
Electrical power supply
66
KVA
Machine weight
10.200
kg
Machine size (L x B x H), approx.
3,90 x 2,20 x 2,60
m
Accessories
Normal equipment
- Hydr. KITAGAWA hydraulic-chuck B-208 for main spindle, diameter 210 mm
- Hydr. KITAGAWA three-jaw chuck B-208 for back spindle, diameter: 210 mm
- B axis (0,0001°)
- C axis (0,0001°)
- Y axis
- Spindle alignment on back spindle
- Synchronization between main and back spindle
- Double foot switch to open/close chuck for main and back spindle
- automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Tool setter (MAZAK Tool Eye System)
- Front door lock
- compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Floppy disk drive
- Documentation
Optional equipment
- 40x tool magazine (CAPTO C6)
- Bar opening 65 mm
- CNC EIA/ISO option package
- Synchronized tapping by rotary tool
- Interface kit for Roboter Robax
- Coolant through the spindle 15 bar
- MAYFRAN ConSep 2000 chip conveyor
