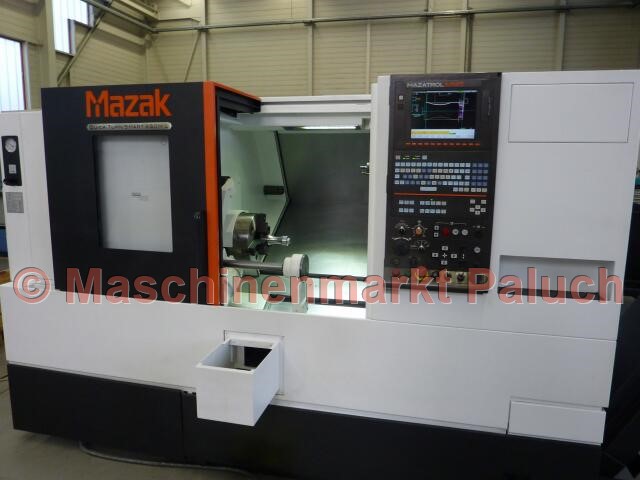

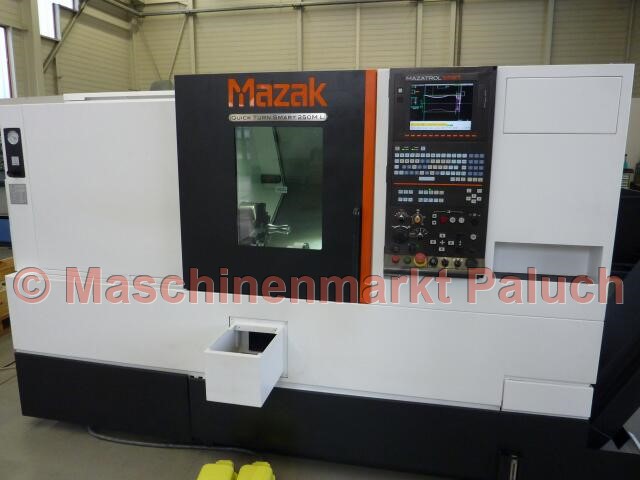

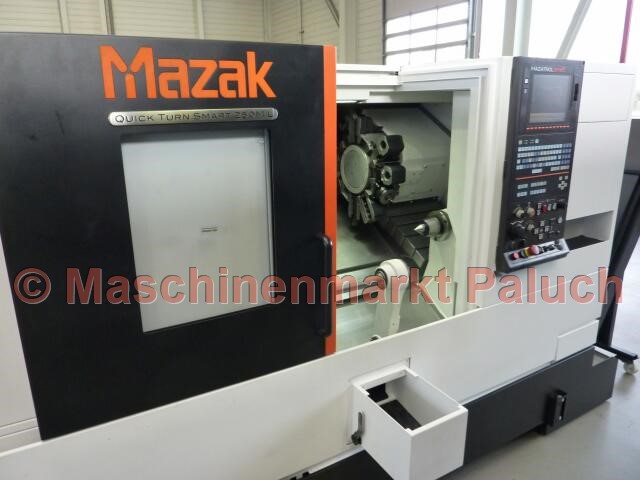

MAZAK Quick Turn Smart 250M L Universal 500
Inventory Number
1587
Machine Type
CNC-Lathe
Year of Construction
2015

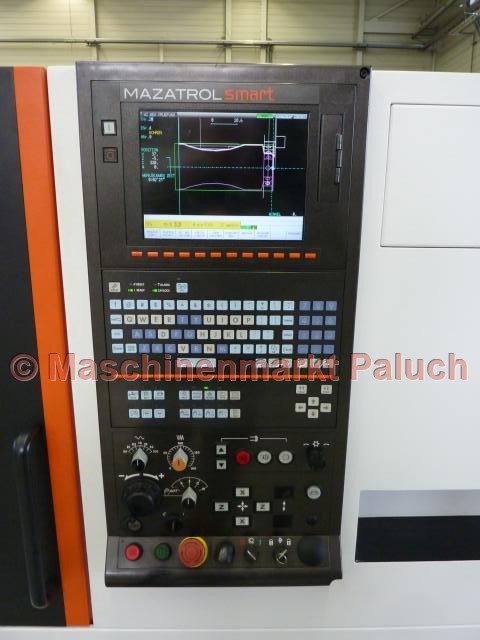

Control
Mazatrol Smart
Technical data
Work-capacity
Max. swing diameter
660
mm
Max. machining diameter
360
mm
Max. machining length
500
mm
Max. bar material diameter
80
mm
Main-spindle
Spindle speed
35 - 4.000
RPM
Main spindle motor
18,5
kW
Torque
358
Nm
Spindle nose
A2 - 8
''
Spindle bore
91
mm
Spindle indexing increments
0,0001°
°

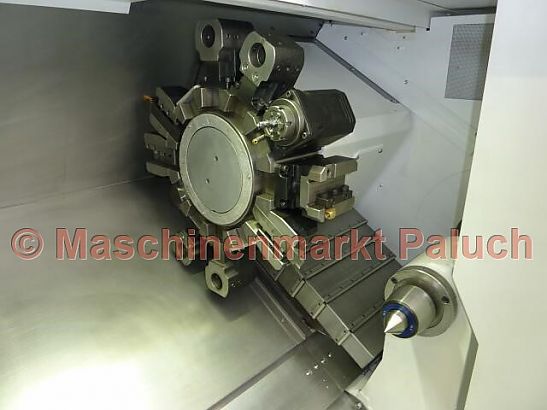

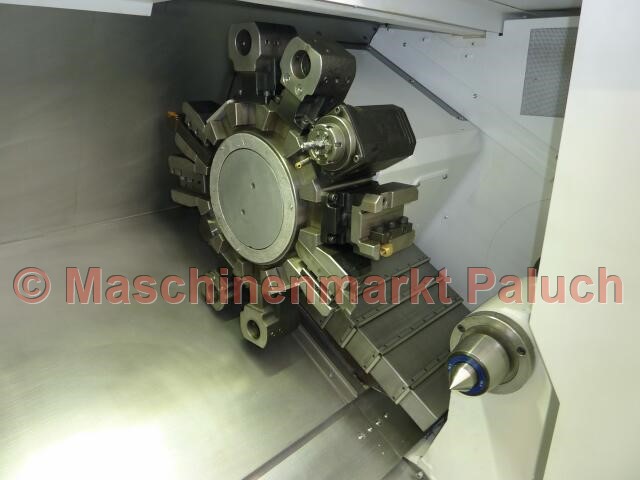

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25 – 4.500
RPM
Power
5,5
kW
Max. torque
47
Nm
Travel
X-axis stroke
225
mm
Z-axis stroke
605
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Z-axis
33
m/min
C-axis
555
RPM

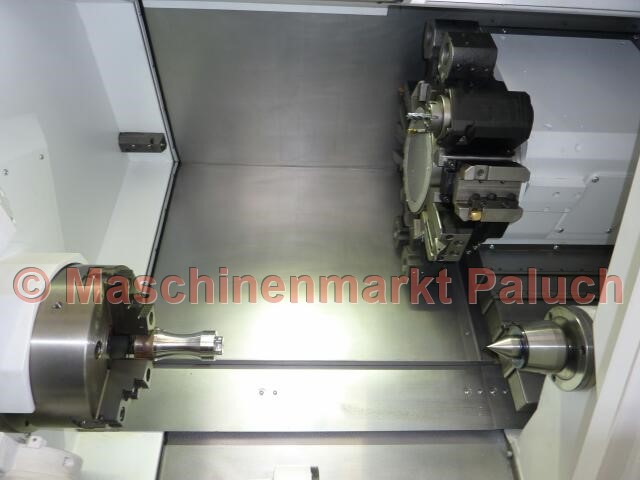

Tailstock
Tailstock center
MK 5
Tailstock travel
565
mm
Machine-data
Electrical power supply
45
KVA
Machine weight
5.000
kg
Machine size (L x B x H), approx.
2,70 x 1,80 x 1,80
m
Accessories
Normal equipment

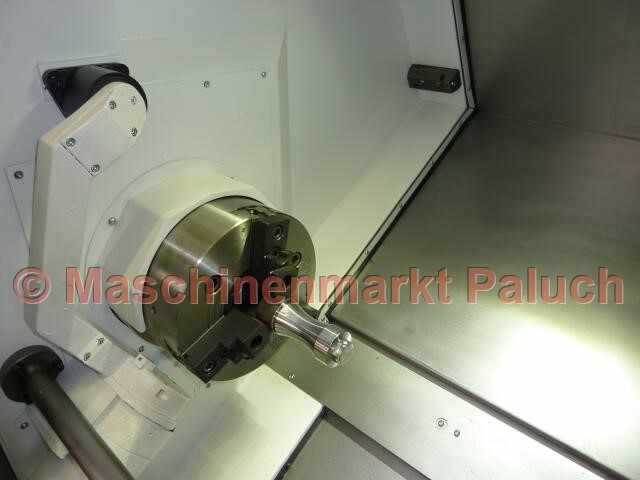

- KITAGAWA hydraulic-chuck BB-210, diameter 254 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close
- Chuck status feedback (open/closed)
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- USB Interface
- Tool check as background function
- documentation
Optional equipment
- Interface for barfeeder
- Autom. parts catcher
- LAN Interface
- High pressure coolant
- MAYFRAN chip conveyor
- 8 pieces static tool-holders
- 2 pieces rotary tool-holders
