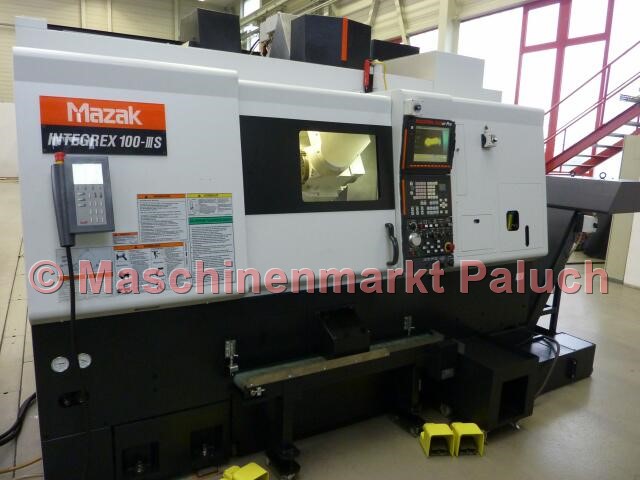

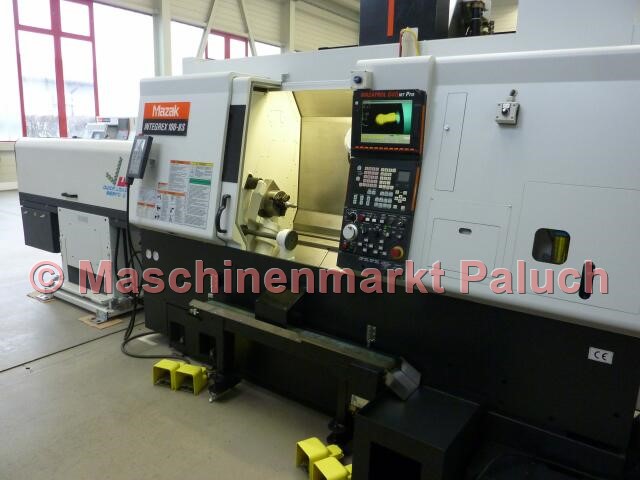

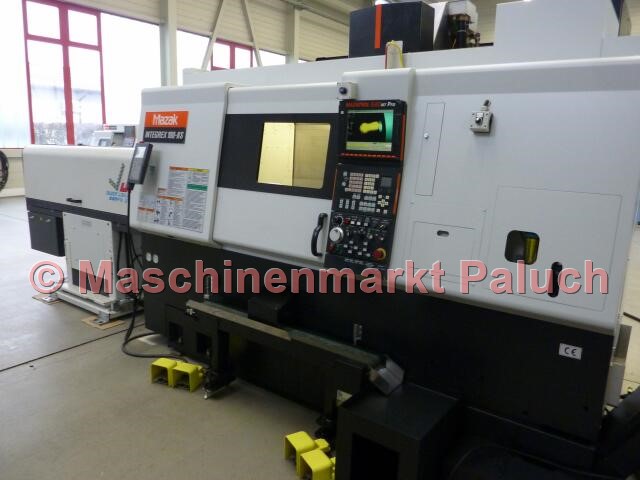

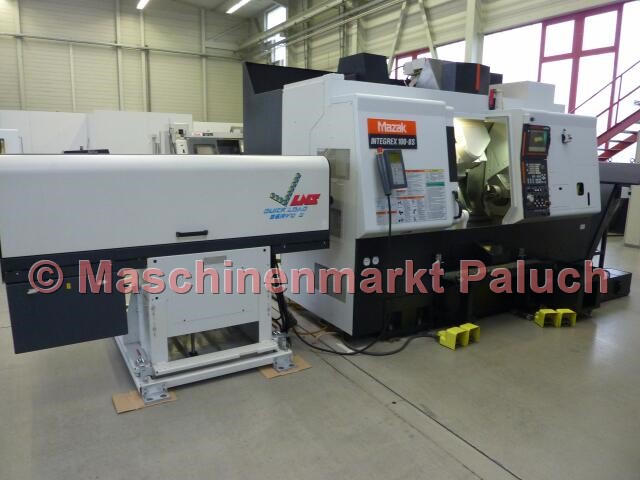

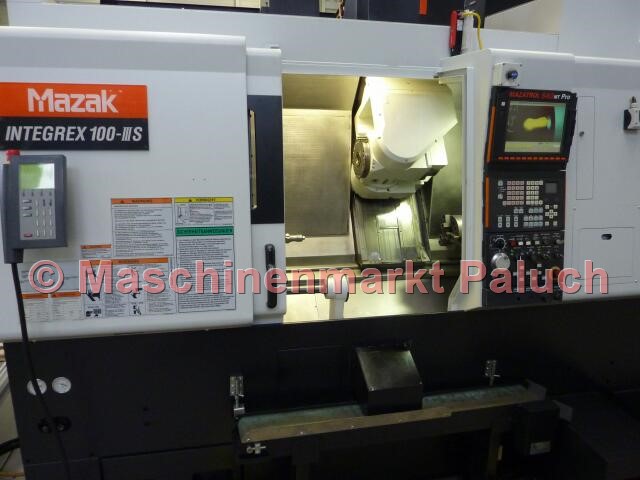

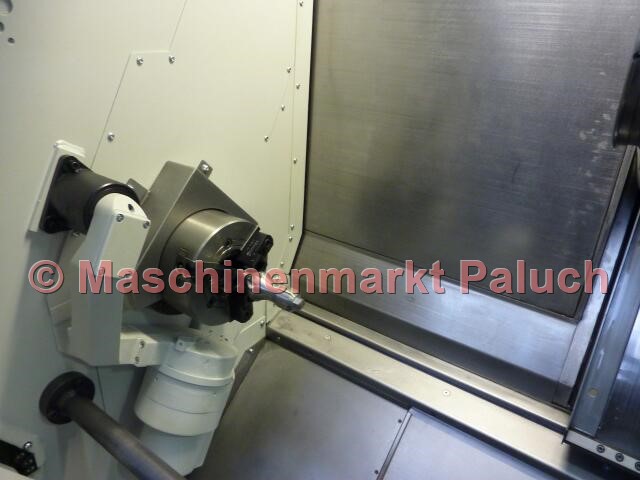

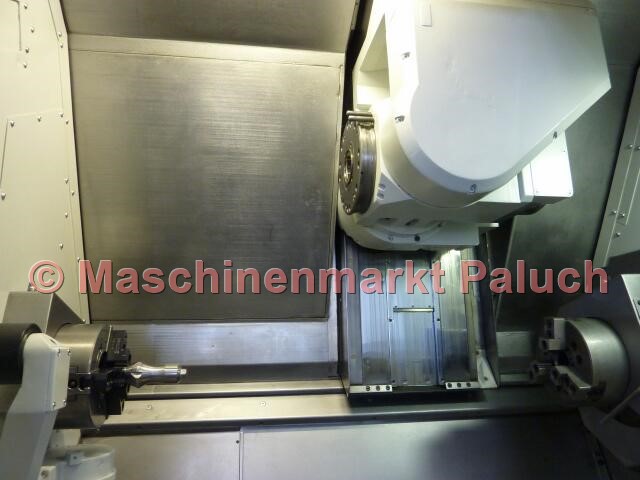

MAZAK Integrex 100-IIIS
Inventory Number
1533
Machine Type
CNC-Lathe
Year of Construction
2006
Control

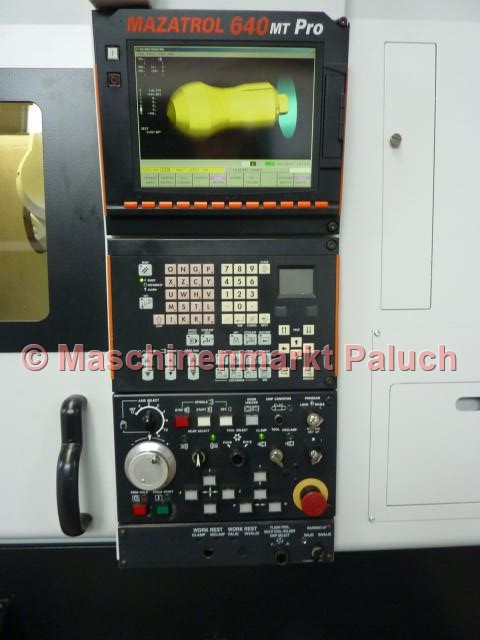

Mazatrol 640MT Pro
Technical data
Work-capacity
Max. swing diameter
545
mm
Max. machining diameter
350
mm
Max. bar material diameter
51
mm
Max. machining length
730
mm
Main-spindle
Spindle speed
35-6.000
RPM
Main spindle motor
11
kW
Max. torque
161
Nm
Spindle nose
A2 – 6
''
Spindle bore
61
mm
Spindle indexing increments
0°-360°/0,0001
°
Second-spindle
Spindle speed
35 – 6.000
RPM
Main spindle motor
11
kW
Max. torque
161
Nm
Spindle indexing increments
360°/0,0001
°
Rotary tools
Spindle speed
15-12.000
RPM
Power
5,5
kW
Max. torque
49
Nm
Tool Receiver
CAPTO C6
Tool magazine
Turret tool capacity
40
Max. tool weight
4
kg
max. tool diameter
90
mm
Max. tool length
200
mm
Tool change time
ca. 0,3
s
Travel
X-axis stroke
410
mm
Z-axis stroke
570
mm
Y-axis stroke
+/- 70
mm
B-axis stroke
-30° bis +195°
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Y-axis
26
m/min
W-axis
30
m/min
Z-axis
33
m/min
C-axis
400
RPM
Cutting feed rate
X-axis
0–8.000
mm/min
Z-axis
0–8.000
mm/min
Y-axis
0–8.000
mm/min
Machine-data
Electrical power supply
28
KVA
Machine weight
7.000
kg
Machine size (L x B x H), approx.
2,60 x 2,20 x 2,50
m
Accessories
Normal equipment
- Hydr. KITAGAWA hydraulic-chuck BB-06 for main spindle, diameter 169 mm
- Hydr. KITAGAWA hydraulic-chuck B-206 for 2nd spindle, diameter 169 mm
- B - axis
- C - axis
- Y - axis
- Spindle orientation on second spindle
- Synchronization of the main and counter spindles
- Double foot switch for opening / closing the chuck for main spindle and 2nd spindle
- Feedback of the feed state (opened / closed) for main spindle and 2nd spindle
- Tool presetter (MAZAK Tool Eye System)
- Front door lock
- complete coolant system
- Coolant and chip protection through
- fully enclosed working space
- Work area lighting
- BAZ machining cycles
- Navigation monitoring display
- Interface for IC memory card
- 3.5" floppy disk drive
- Tool life monitoring
- Interface for MSK
- Documentation
Optional equipment

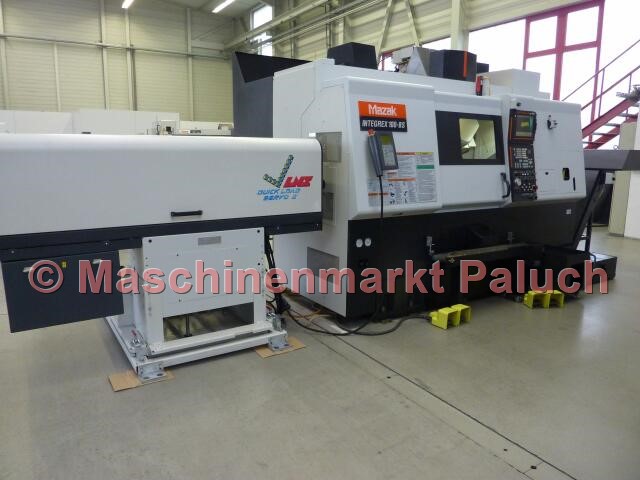

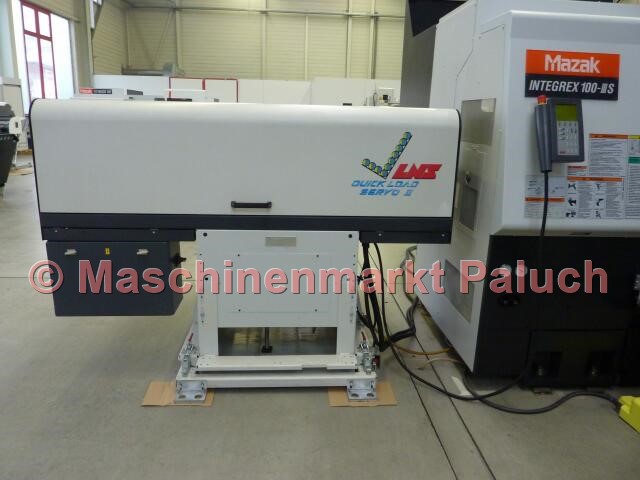

- LNS short bar loading magazine
- Tool magazine for 40 tools (CAPTO C6)
- Main spindle with bar diameter 51 mm
- Interface for barfeeder
- Automatic parts catcher
- Second spindle with C - axis 0,0001 degree
- Option package 5-axis N-simultaneous machining
- High pressure coolant
- MAYFRAN chip conveyor
