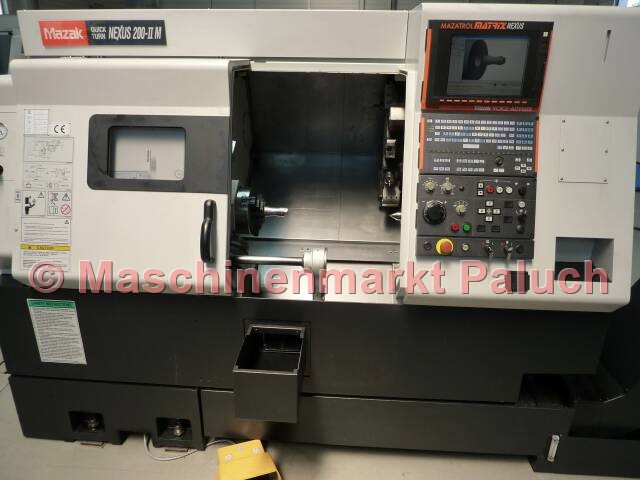

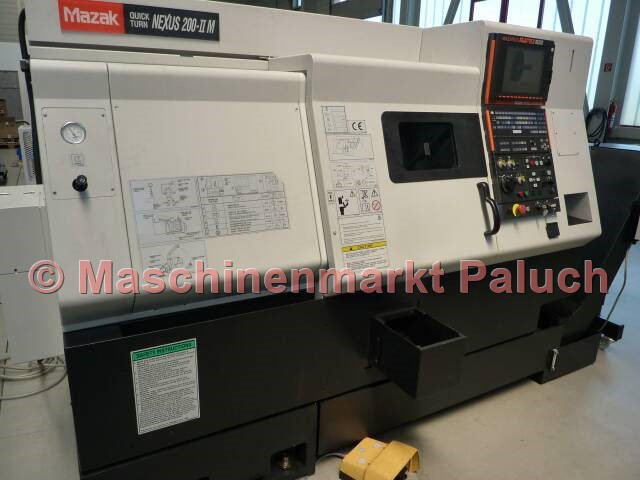

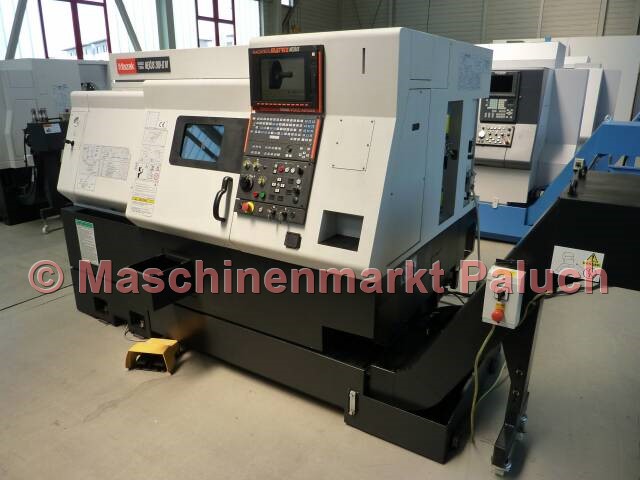

MAZAK Quick Turn Nexus 200-II M Universal 500
Inventory Number
1496
Machine Type
CNC-Lathe
Year of Construction
2007

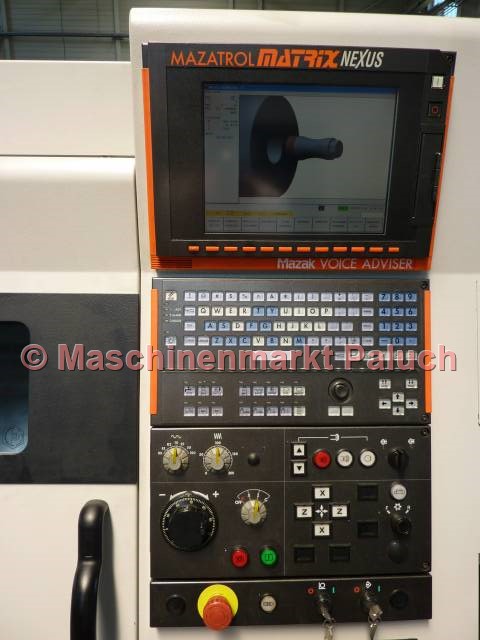

Control
Mazatrol Matrix
Technical data
Work-capacity
Max. swing diameter
675
mm
Max. machining diameter
380
mm
Max. machining length
541
mm
Max. bar material diameter
65
mm
Main-spindle
Spindle speed
35 - 5.000
RPM
Main spindle motor
26
kW
Torque
465
Nm
Spindle nose
A2 - 6
''
Spindle bore
76
mm
Spindle indexing increments
0,001
°

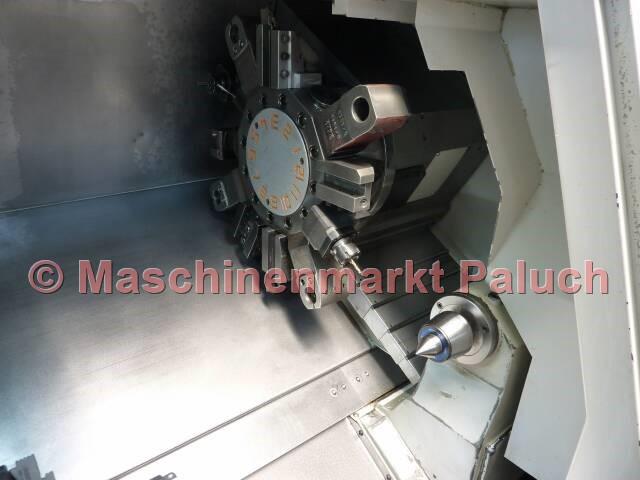

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25 – 4.500
RPM
Power
5,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
230
mm
Z-axis stroke
575
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Z-axis
33
m/min
C-axis
555
RPM
Cutting feed rate
X/Z-axis
0 - 2.000
mm/min
Tailstock
Tailstock center
MK 5
Tailstock travel
550
mm
Machine-data
Electrical power supply
46,8
KVA
Machine weight
4.900
kg
Machine size (L x B x H), approx.
2,50 x 1,80 x 2,00
m
Accessories
Normal equipment

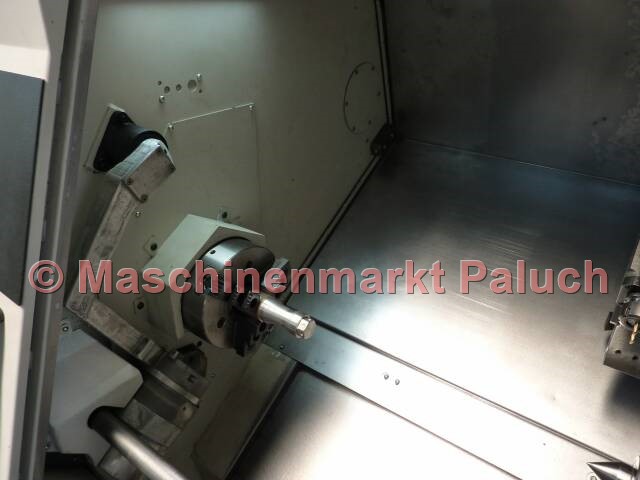

- Hydr. KITAGAWA chuck BB-208, diameter 210 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Programmable tailstock
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Tool check as background function
- Navigation monitoring display
- USB interface 2 pieces
- LAN interface
- Intelligent heat shield
- Intelligent danger shield
- Mazak language support
- Virtual editing
- Documentation
Optional equipment
- Interface for barfeeder
- Autom. parts catcher
- High pressure coolant
- MAYFRAN Chip conveyor
- 8 pieces static tool holders
- 2 pieces rotary tool holders
