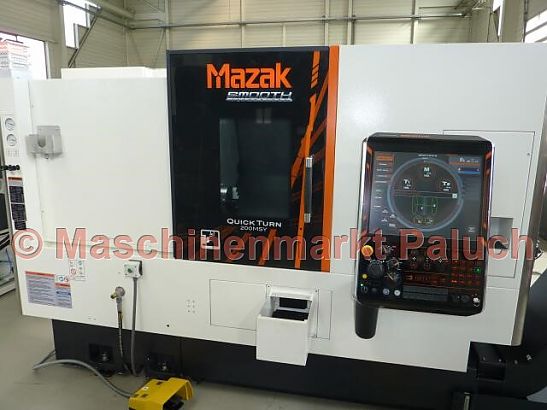

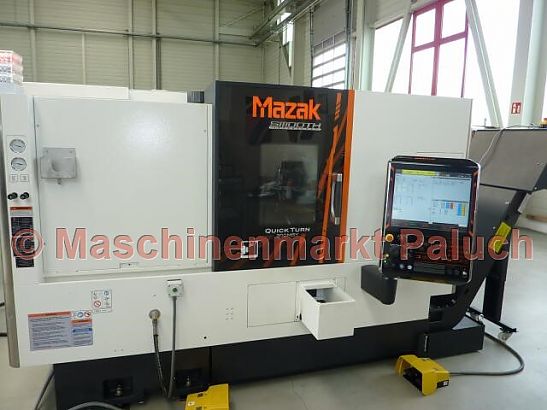

MAZAK Quick Turn 200MSY
Inventory Number
1615
Machine Type
CNC-Lathe
Year of Construction
2019
Control
Mazatrol SmoothG
Technical data
Work-capacity
Max. swing diameter
695
mm
Max. machining diameter
380
mm
Max. machining length
575
mm
Max. bar material diameter
65
mm
Main-spindle
Spindle speed
35-5.000
RPM
Main spindle motor
26
kW
Spindle bore
76
mm
Spindle indexing increments
0° - 360°/0,0001
°

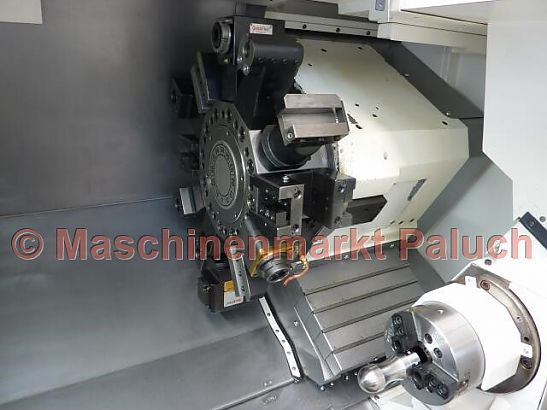

Turret
Turret tool capacity
12

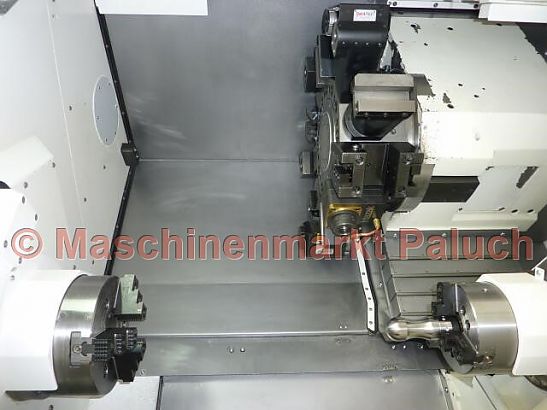

Second-spindle
Spindle speed
35 – 6.000
RPM
Power
11
kW
Max. torque
90
Nm
Spindle nose
A2 – 5
''
C-axis
0,0001
°
Rotary tools
Spindle speed
25-5.000
RPM
Power
5,5
kW
Max. torque
47
Nm
Travel
X-axis stroke
234
mm
Y-axis stroke
100 (+/- 50)
mm
Z-axis stroke
625
mm
W-axis stroke
555
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Y-axis
21
m/min
Z-axis
33
m/min
W-axis
33
m/min
C-axis
555
RPM
Cutting feed rate
X/Y/Z-axis
0-2.000
mm/min
Machine-data
Electrical power supply
43
KVA
Machine weight
ca. 5.900
kg
Machine size (L x B x H), approx.
2,80 x 1,90 x 2,00
m
Accessories
Normal equipment
- KITAGAWA hydraulic-chuck BB-208, diameter 210 mm

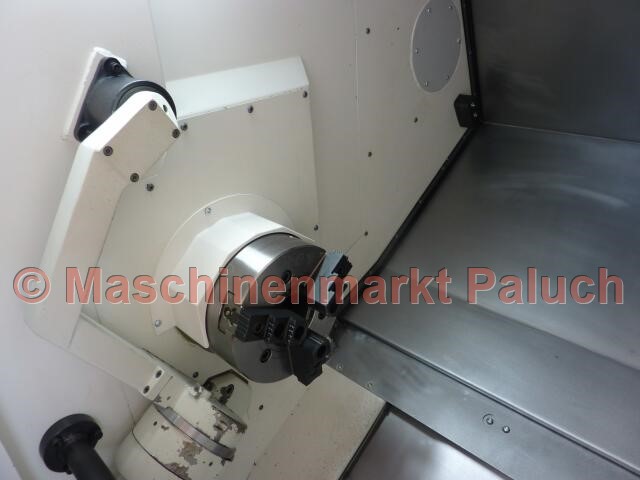

- KITAGAWA hydraulic-chuck B-206 for second spindel, diameter 169 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Y-axis
- Double foot switch to open/close the chuck
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Synchron-tapping
- User Macro (600 variables)
- MAZAK Tornado EIA/ISO
- EIA/ISO Input function
- Optional stop
- Tapping function
- Polar coordinate entry (G122)
- Direct data input function drawing
- LAN Interface
- Documentation
Optional equipment
- Interface for barfeeder
- Autom. parts catcher
- Indicator lamp for machining status
- High pressure coolant
- MAYFRAN chip conveyor
- 9 pieces static tool-holders
- 3 pieces rotary tool-holders
