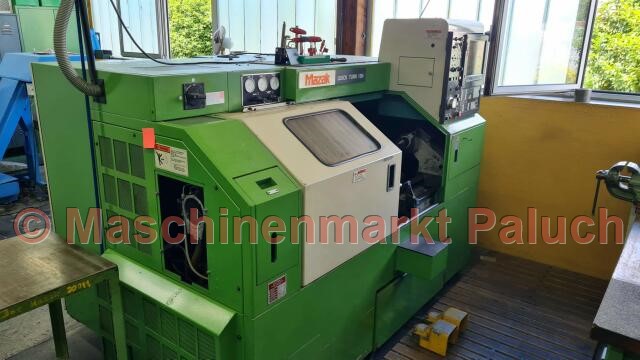

MAZAK Quick Turn 15N Universal
Inventory Number
1575
Machine Type
CNC-Lathe
Year of Construction
1990
Control
Mazatrol T – 32/2
Technical data
Work-capacity
Max. swing diameter
440
mm
Max. machining diameter
260
mm
Max. machining length
444
mm
Max. bar material diameter
51
mm
Main-spindle
Spindle speed
45 – 4.500
RPM
Main spindle motor
15
kW
Max. torque
230
Nm
Spindle nose
A2 – 6
''
Spindle bore
61
mm

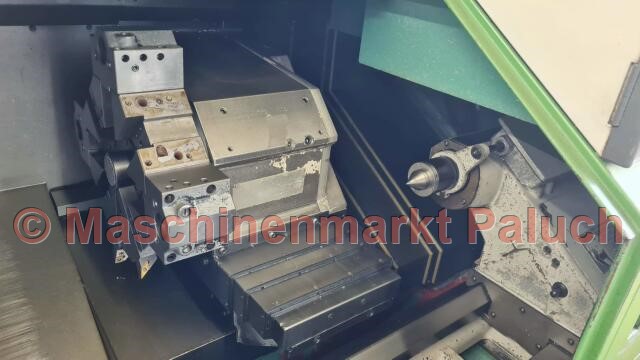

Turret
Turret tool capacity
8
Travel
X-axis stroke
155
mm
Z-axis stroke
510
mm
Feedrate
Rapid traverse rate:
X/Z-axis
30
m/min
X/Z-axis
5.000
mm/min
Tailstock
Tailstock center
MK 4
Tailstock travel
460
mm
Tailstock quill stroke
130
mm
Machine-data
Electrical power supply
42
KVA
Machine weight
4.300
kg
Machine size (L x B x H), approx.
2,50 x 1,60 x 1,80
m
Accessories
Normal equipment
- KITAGAWA hydraulic chuck B-208, diameter 210 mm
- Tool setter (MAZAK Tool Eye System)
- Front door interlock
- Double foot switch
- NC – tailstock
- Coolant-system
- Fully-enclosed front cover
- Interface for MAZAK Mikro disk and MSK
- Machine work light
- Manuals
Optional equipment
- Autom. parts catcher
- Chip conveyor
- Some tool-holders for 8-station drum turret
