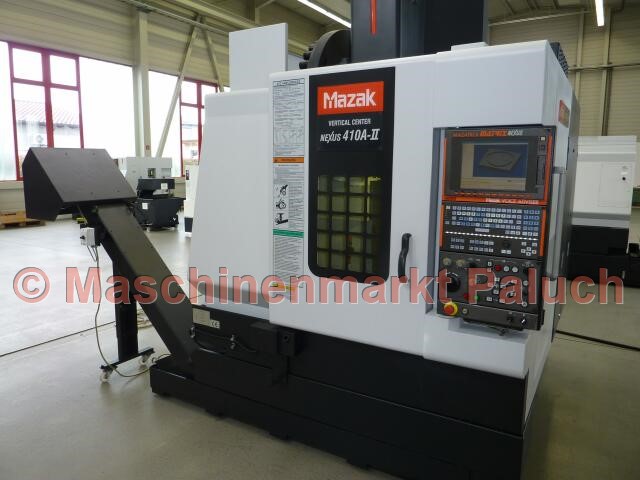

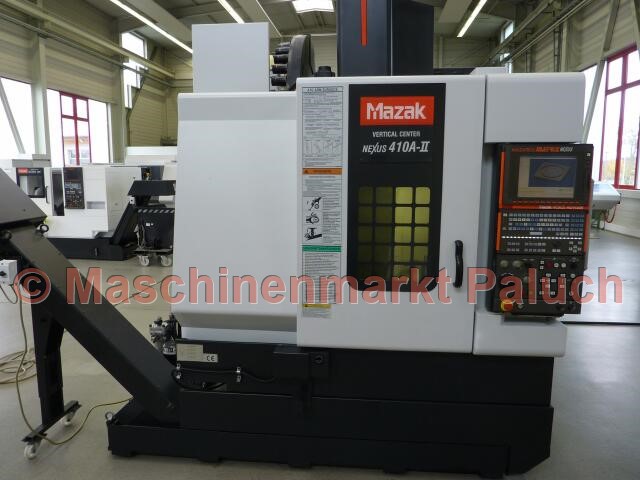

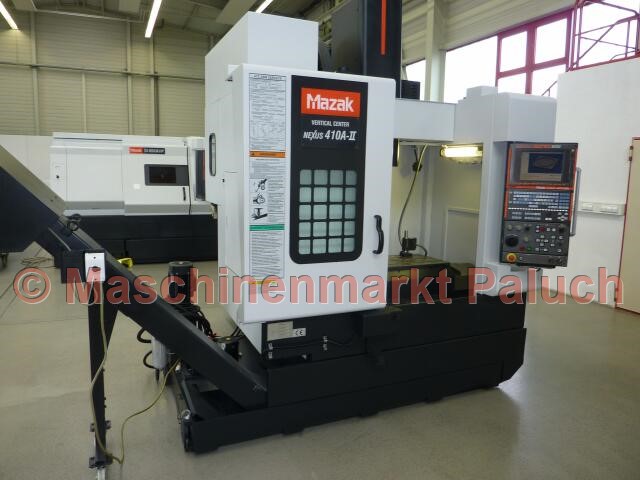

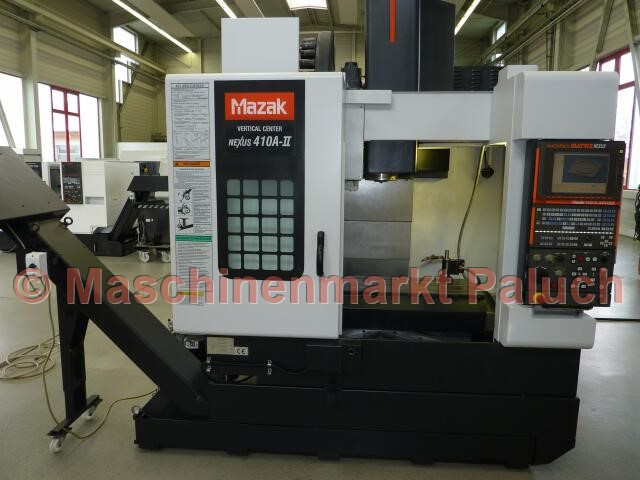

MAZAK VC-Nexus 410A-II
Inventory Number
1583
Machine Type
CNC-Machining Center – Vertical
Year of Construction
2007
Control

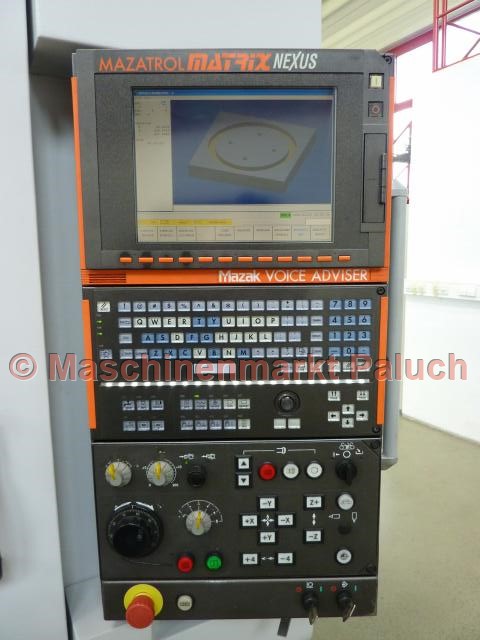

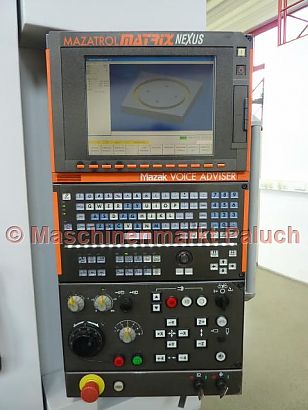

Mazatrol Matrix Nexus
Technical data

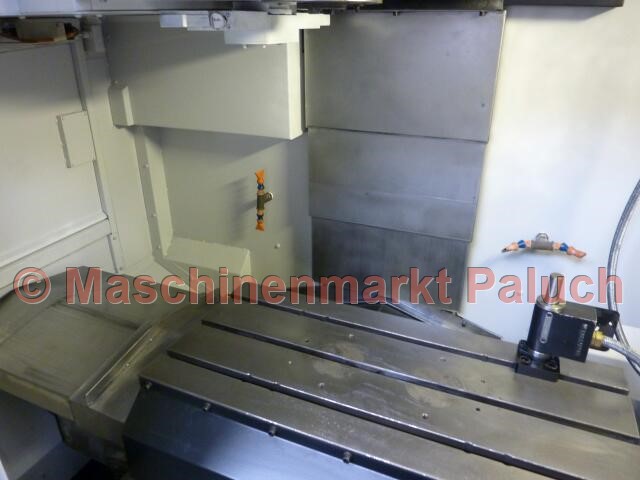

Worktable
Table size
900 x 410
mm
Max. table load
500
kg
T-slots
3
count
T-slot spacing
125
mm
Slot width
18
mm
Travel
X-axis stroke
560
mm
Y-axis stroke
410
mm
Z-axis stroke
510
mm
Feedrate
Rapid traverse rate:
X/Y/Z-axis
36
m/min
Cutting feed rate
1 - 8.000
mm/min
Spindle
Spindle speed
35 - 12.000
RPM
Tool shank
CAT 40
Main spindle motor
18,5
kW
Tool magazine
Turret tool capacity
30
max. tool diameter
80
mm
Max. tool diameter with adjacent tool pockets empty
125
mm
Max. tool length
350
mm
Max. tool weight
8
kg
Tool change time
2.9
s
Machine-data
Electrical power supply
33,1
KVA
Machine weight
4.760
kg
Machine size (L x B x H), approx.
2,10 x 2,60 x 2,80
m
Accessories
Normal equipment
- complete coolant system
- Cooling through the spindle

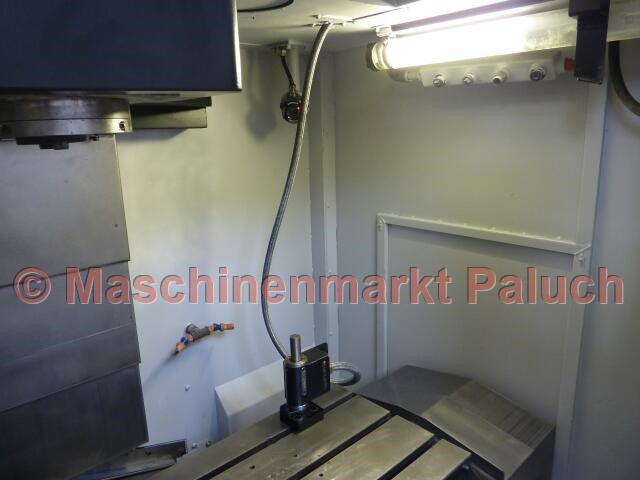

- autom. Tool length measuring system
- Coolant and chip protection through fully enclosed working space
- Workspace illumination
- Tool check as background function
- Navigation monitoring display
- User Macro (600 variables)
- MAZAK Tornado EIA/ISO
- EIA/ISO Input function
- Synchronized tapping
- Optional stop
- Direct data input function drawing
- USB Interface (x 2)
- LAN Interface
- Intelligent heat shield
- Intelligent danger sign
- MAZAK Language Support
- Virtual machining
- Documentation
Optional equipment
- High-pressure cooling through the spindle
- Interface Set
- CNC options-package Performance
- MAZAK Monitoring System B, Renishaw
- Chip conveyor
