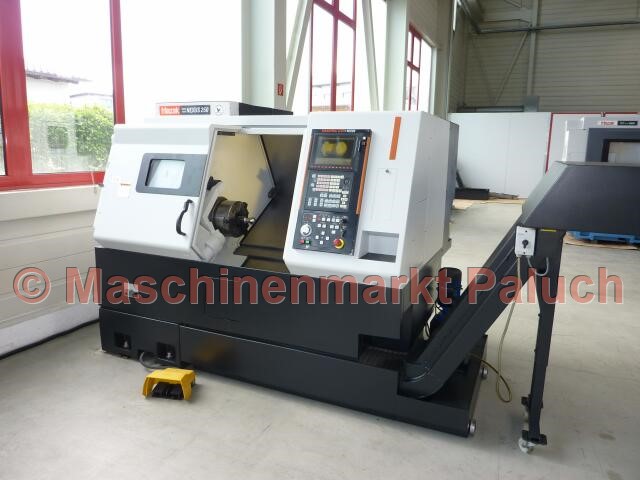

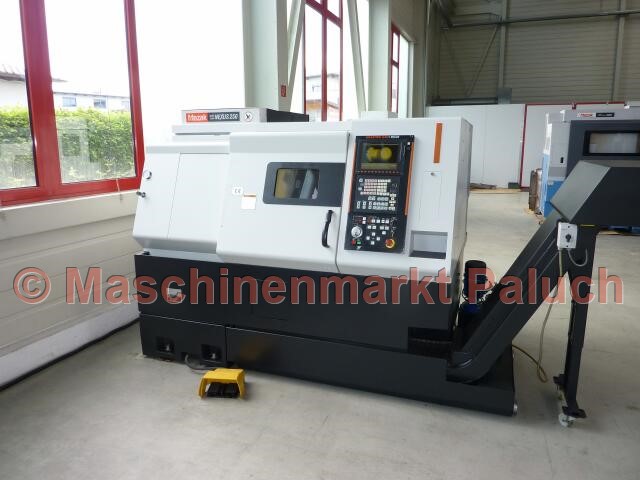

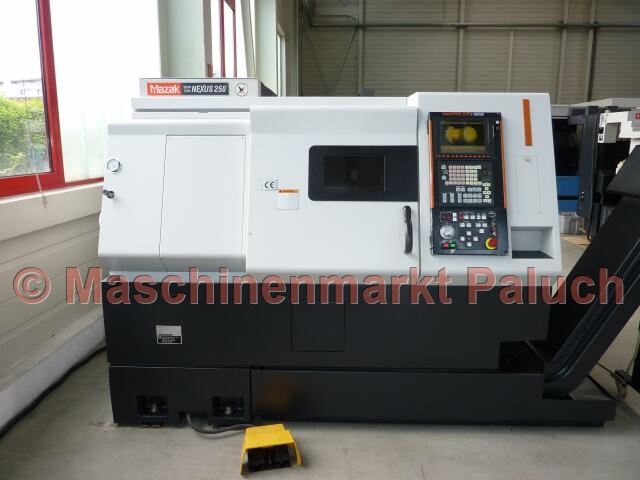

MAZAK Quick Turn Nexus 250 Universal 500
Inventory Number
1566
Machine Type
CNC-Lathe
Year of Construction
2005
Control

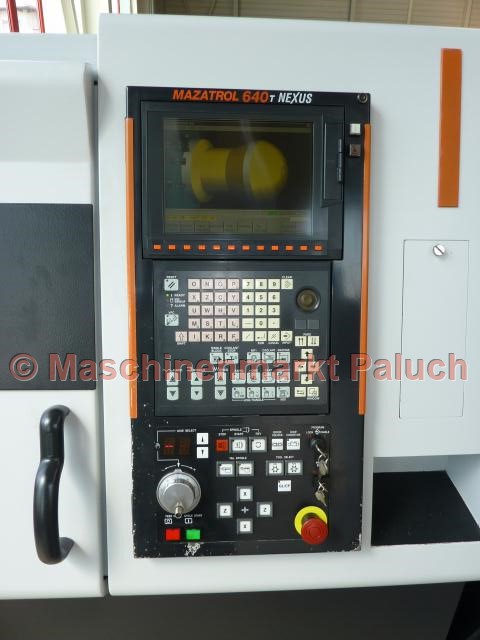

Mazatrol 640T Nexus
Technical data
Work-capacity
Max. swing diameter
610
mm
Max. machining diameter
350
mm
Max. machining length
475
mm
Max. bar material diameter
74
mm
Main-spindle
Spindle speed
35 – 4.000
RPM
Main spindle motor
26
kW
Max. torque
350
Nm
Spindle nose
A2 – 6
''
Spindle bore
88
mm

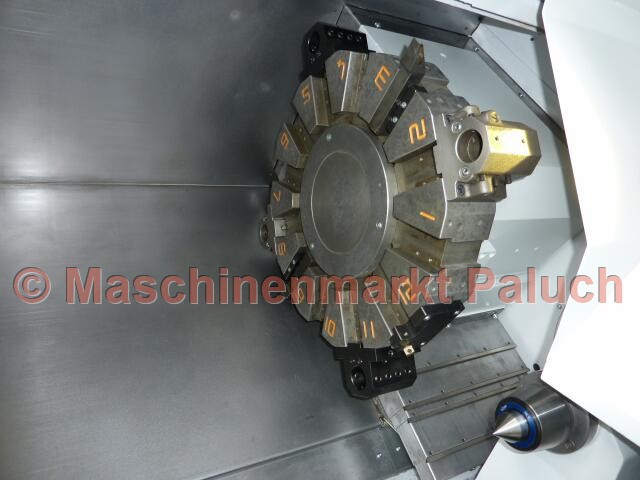

Turret
Turret tool capacity
12
Travel
Z-axis stroke
190
mm
Y-axis stroke
515
mm
Feedrate
X-axis
30
m/min
Z-axis
33
m/min
Tailstock
Tailstock center
MK 5
Tailstock travel
525
mm
Machine-data
Electrical power supply
42
KVA
Machine weight
4.700
kg
Machine size (L x B x H), approx.
2,35 x 1,78 x 1,85
m
Accessories
Normal equipment

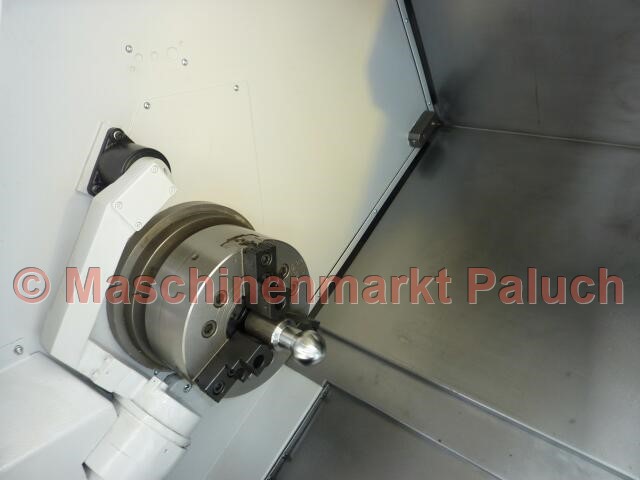

- KITAGAWA hydraulic chuck B-210, diameter 254 mm
- Tool setter (MAZAK Tool Eye System)
- Double foot switch to open/close chuck
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Compl. Coolant system
- Coolant and chip protection to fully enclosed workspace
- NC-programmable tailstock
- Workspace illumination
- Tool check as background function
- Floppy disk drive
- PCMCIA Port
- Interface for MAZATROL DATA TRANSFER
- Documentation
Optional equipment
- High pressure coolant
- MAYFRAN chip conveyor
- tool holders for 12-station drum turret
