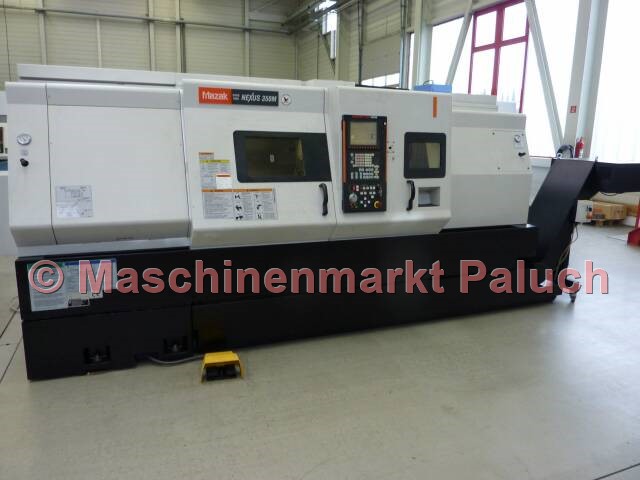

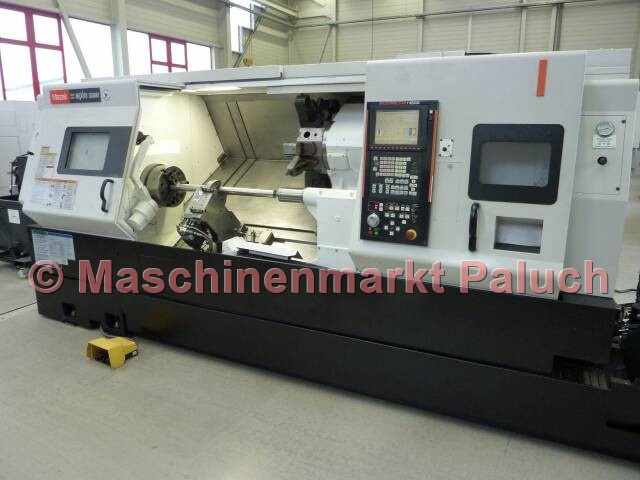

MAZAK Quick Turn Nexus 350M Universal 1500
Inventory Number
1500
Machine Type
CNC-Lathe
Year of Construction
2005

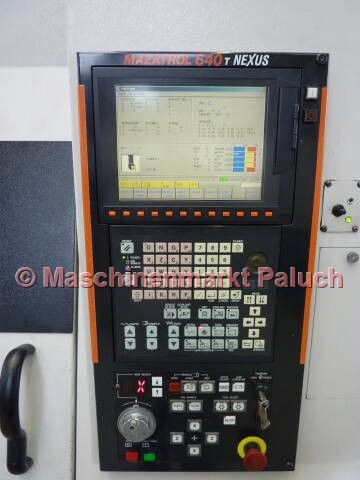

Control
Mazatrol 640T Nexus
Technical data
Work-capacity
Max. swing diameter
750
mm
Max. machining diameter
420
mm
Max. machining length
1.538
mm
Max. bar material diameter
102
mm
Main-spindle
Spindle speed
35 - 3.300
RPM
Main spindle motor
30
kW
Torque
800
Nm
Spindle nose
A2 - 11
''
Spindle bore
112
mm
Spindle indexing increments
0,001
°

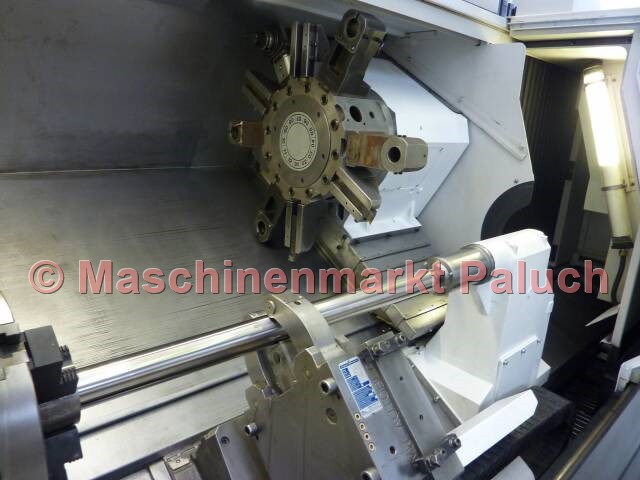

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25 – 4.000
RPM
Power
7,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
260
mm
Z-axis stroke
1.605
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Z-axis
25
m/min
C-axis
400
RPM
Cutting feed rate
X/Z-axis
0-5000
mm/min
C-axis
1° - 2.000°
°/min
Tailstock
Tailstock center
MK 5
Tailstock travel
1.580
mm
Machine-data
Electrical power supply
43
KVA
Machine weight
7.900
kg
Machine size (L x B x H), approx.
4,30 x 2,10 x 2,00
m
Accessories
Normal equipment

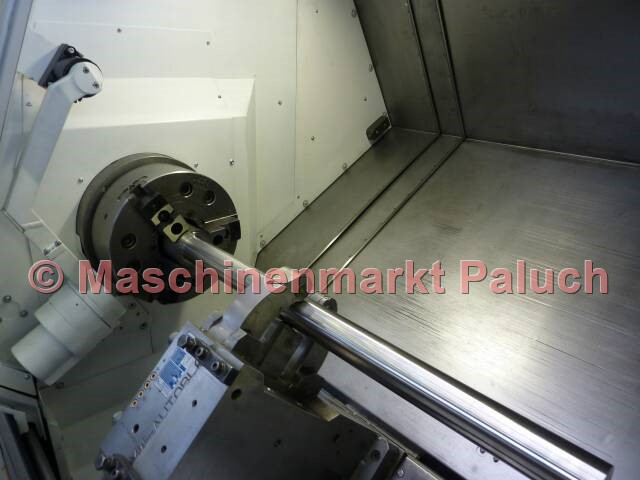

- KITAGAWA hydraulic-chuck B-212, diameter 304 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Double foot switch to open/close
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Tool check as background function
- Processing Navigation – Forecast
- Processing navigation – monitoring
- Edit Navigation – Result
- PCMCIA interface
- 3. 5" Floppy Disk
- documentation
Optional equipment
- hydraulic SMW Steady Rest SLU3.2
- High-pressure coolant
- Synchronized tapping by rotary tool
- chip conveyor
- 8 pieces static tool holders
- 2 pieces rotary tool holders
