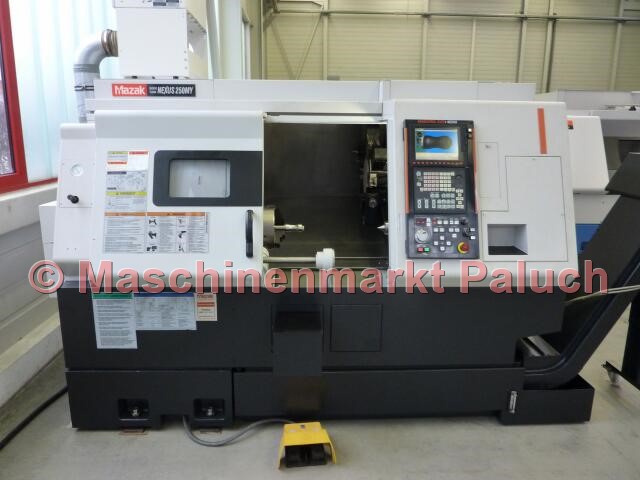

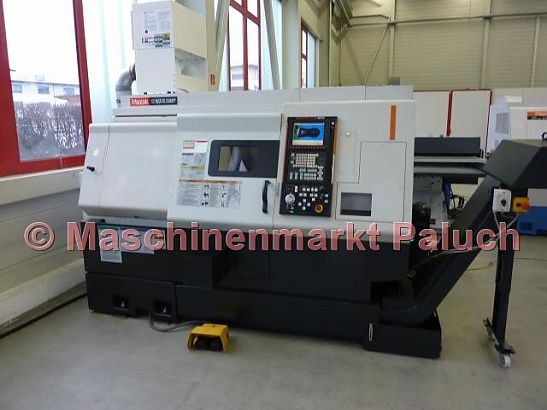

MAZAK Quick Turn Nexus 250MY
Inventory Number
1509
Machine Type
CNC-Lathe
Year of Construction
2006
Control
Mazatrol 640T Nexus
Technical data
Work-capacity
Max. swing diameter
525
mm
Max. machining diameter
380
mm
Max. machining length
504
mm
Max. bar material diameter
74
mm
Main-spindle
Spindle speed
35-5.000
RPM
Main spindle motor
26
kW
Max. torque
350
Nm
Spindle bore
88
mm
Spindle indexing increments
0° - 360°/0,001
°

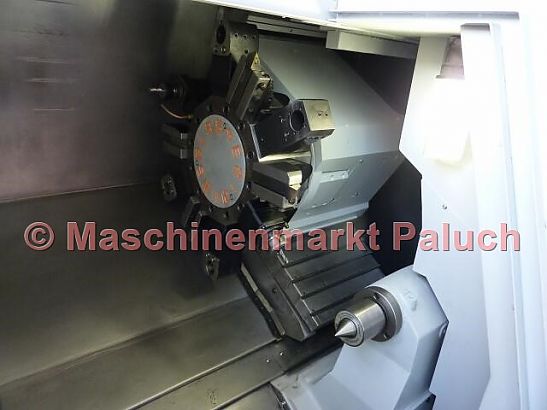

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25-4.500
RPM
Power
5,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
230
mm
Y-axis stroke
100 (+/- 50)
mm
Z-axis stroke
575
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Y-axis
21
m/min
Z-axis
33
m/min
C-axis
400
RPM
Cutting feed rate
X/Z-axis
0-5.000
mm/min
C-axis
1° - 2.000°
°/min
Tailstock
Tailstock quill stroke
150
mm
Tailstock center
MK 5
Tailstock travel
550
mm
Machine-data
Electrical power supply
41
KVA
Machine weight
ca. 5.600
kg
Machine size (L x B x H), approx.
2,80 x 1,90 x 2,00
m
Accessories
Normal equipment

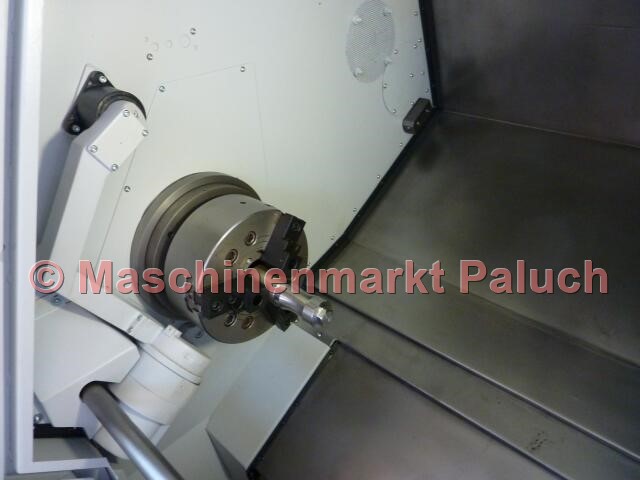

- KITAGAWA hydraulic chuck B-210, diameter 254 mm
- Tool setter (MAZAK Tool Eye System)
- C-axis
- Y-axis
- Double foot switch for opening / closing the chuck
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Programmable tailstock
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- PCMCIA Interface
- Navigation display (monitoring)
- 3. 5" floppy disk drive
- Interface for MAZATROL DATA TRANSFER
- Documentation
Optional equipment
- Interface for barfeeder
- Parts catcher
- Synchronized tapping by rotary tool
- High pressure coolant
- MAYFRAN chip conveyor
- 8 pieces static tool-holders
- 2 pieces rotary tool-holders
