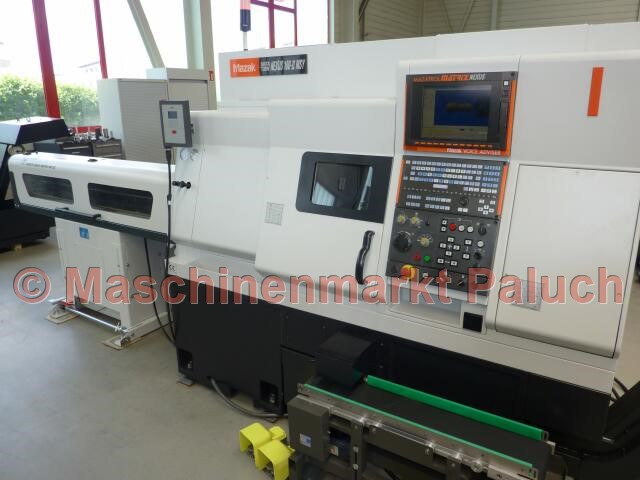

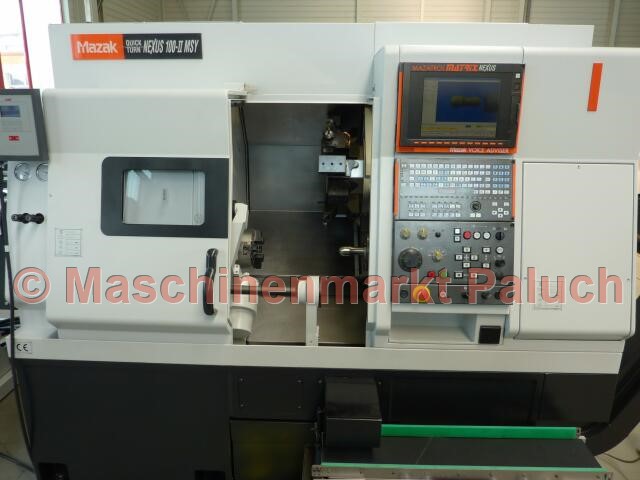

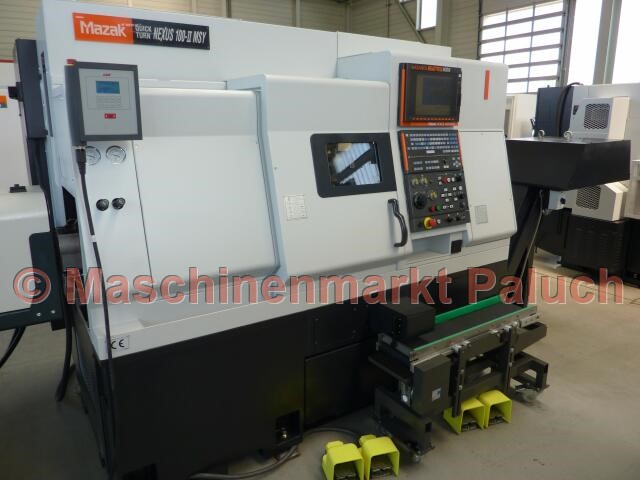

MAZAK Quick Turn Nexus 100-II MSY
Inventory Number
1610
Machine Type
CNC-Lathe
Year of Construction
2008

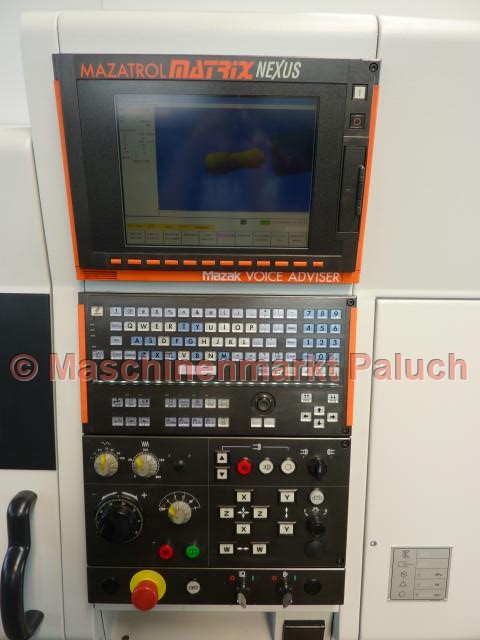

Control
Mazatrol Matrix Nexus
Technical data
Work-capacity
Max. swing diameter
550
mm
Max. machining diameter
280
mm
Max. bar material diameter
42
mm
Main-spindle
Spindle speed
35-6.000
RPM
Main spindle motor
11
kW
Max. torque
184
Nm
Spindle nose
A2 – 5“
''
Spindle bore
61
mm
Spindle indexing increments
0° - 360°/0,001
°
Second-spindle
Spindle speed
35 – 6.000
RPM
Power
11
kW
Max. torque
89
Nm
Spindle indexing increments
0,0001
°

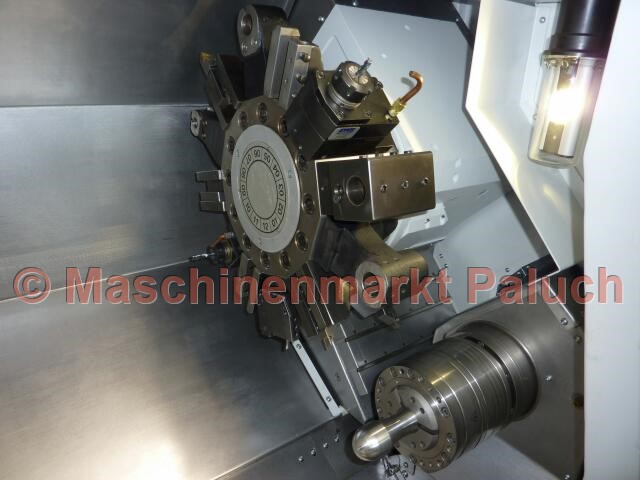

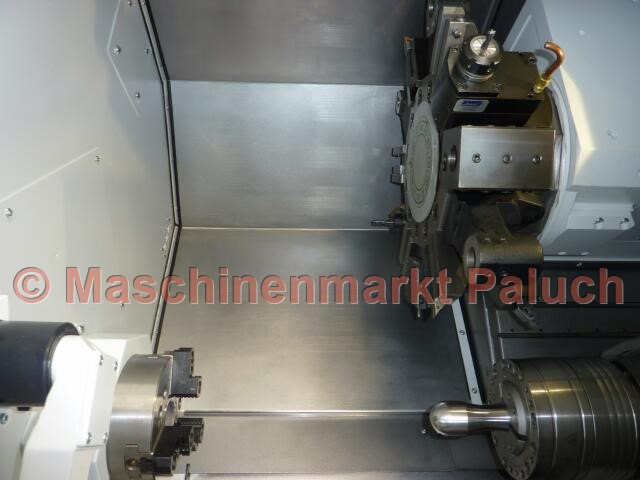

Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25-4.500
RPM
Power
5,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
185
mm
Y-axis stroke
100 (+/- 50)
mm
Z-axis stroke
455
mm
W-axis stroke
460
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Y-axis
21
m/min
Z-axis
33
m/min
W-axis
30
m/min
C-axis
555
RPM
Cutting feed rate
X/Y/Z-axis
0-2.000
mm/min
Machine-data
Electrical power supply
23
KVA
Machine weight
ca. 4.200
kg
Machine size (L x B x H), approx.
2,40 x 1,65 x 2,00
m
Accessories
Normal equipment

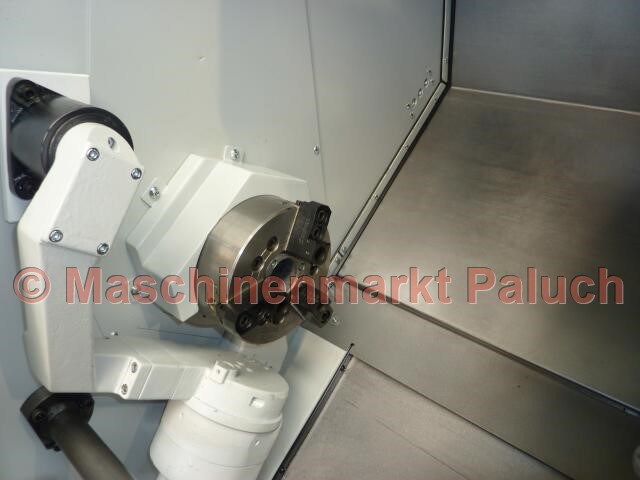

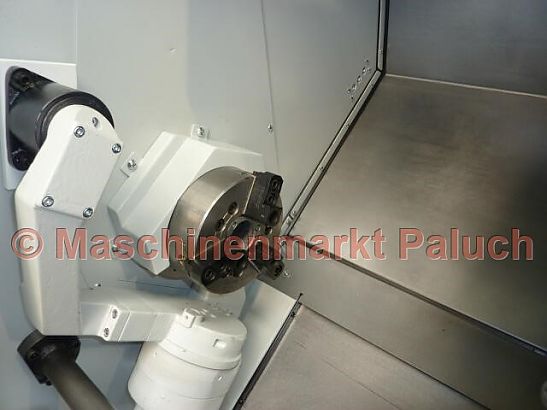

- SMW Hydraulic-chuck KSZ-MB 40 for main spindle, diameter 210 mm
- HAINBUCH Hydraulic-chuck Kombifix Gr. 65 for subspindle, diameter 169 mm
- C-axis
- Y-axis
- Spindle orientation at subspindle
- Synchronization of main and subspindle
- Double foot switch to open/close the chuck
- Automatic opening/closing of chuck
- Chuck status feedback (open/closed)
- Front door lock
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- Workspace illumination
- Synchron-tapping
- User Macro (600 variables)
- MAZAK Tornado EIA/ISO
- EIA/ISO Input function
- Optional stop
- Tapping function
- Polar coordinate entry (G122)
- Direct data input function drawing
- USB Interface (x 2)
- LAN Interface
- Intelligent heat shield
- Intelligent danger sign
- MAZAK Language Support
- Virtual machining
- Documentation
Optional equipment

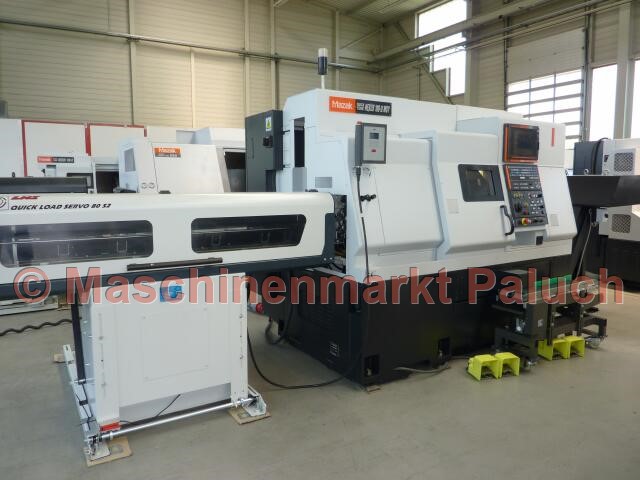

- LNS barfeeder, Model Quick Load Servo 80 S2
- Interface for barfeeder
- autom. parts catcher
- High pressure coolant
- MAYFRAN chip conveyor
- 9 pieces static tool-holders
- 3 pieces rotary tool-holders
