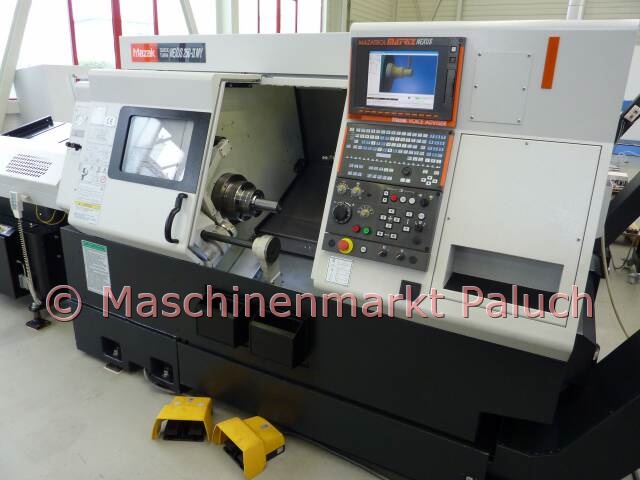

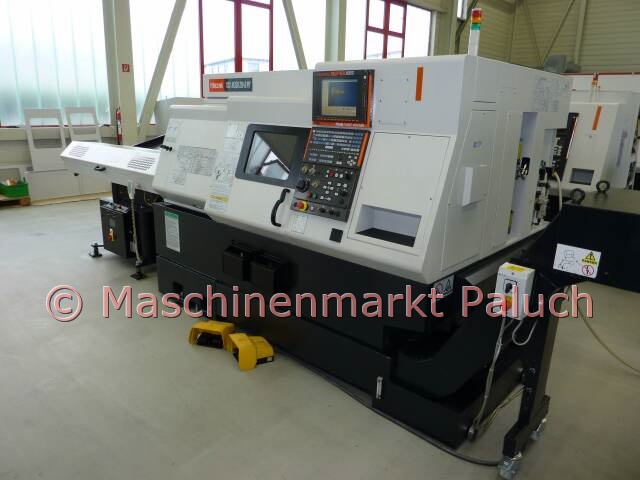

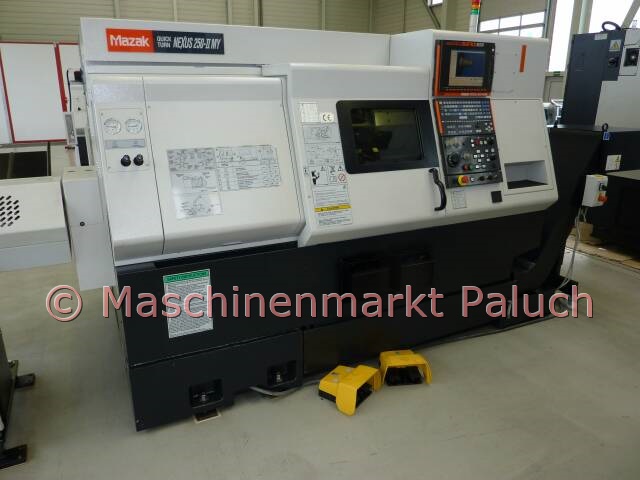

MAZAK Quick Turn Nexus 250-II MSY
Inventory Number
1376
Machine Type
CNC-Lathe
Year of Construction
2007
Control
Mazatrol Matrix
Technical data
Work-capacity
Max. swing diameter
675
mm
Max. machining diameter
380
mm
Max. machining length
504
mm
Max. bar material diameter
74
mm
Main-spindle
Spindle speed
35 – 4.000
RPM
Main spindle motor
26
kW
Max. torque
465
Nm
Spindle bore
88
mm
Spindle indexing increments
0,001
°
Second-spindle
Rotary tool spindle speed
35 – 6.000
RPM
Power
11
kW
Max. torque
89
Nm
Spindle indexing increments
0,001
°
Turret
Turret tool capacity
12
Rotary tools
Spindle speed
25-4.500
RPM
Power
5,5
kW
Max. torque
35
Nm
Travel
X-axis stroke
230
mm
Y-axis stroke
100 (+/- 50)
mm
Z-axis stroke
575
mm
W-axis stroke
585
mm
Feedrate
Rapid traverse rate:
X-axis
30
m/min
Y-axis
21
m/min
Z-axis
33
m/min
W-axis
30
m/min
Cutting feed rate
X/Y/Z-axis
0-2.000
mm/min
Machine-data
Electrical power supply
47,4
KVA
Machine weight
ca. 5.400
kg
Machine size (L x B x H), approx.
2,85 x 1,90 x 2,00
m
Accessories
Normal equipment
- HAINBUCH hydraulic collet-chuck Nova for mainspindle
- Hydr. KITAGAWA hydraulic-chuck B-206 for second spindle, diameter 169 mm
- Tool setter (MAZAK Tool Eye System)
- C–axis
- Y–axis
- Synchronization of the main and secondary spindlel
- Autom. Opening / closing the feed
- Front door locker
- compl. Coolant system
- Coolant and chip protection
- Work area lighting
- User macro (600 variables)
- EIA/ISO Input Function
- Tapping function
- Polar coordinate input (G122)
- Drawing data direct input function
- USB interface 2 pieces
- lan interface
- Intelligent heat shield
- Intelligent Danger Sign
- MAZAK Language Support
- Virtual Processing
- Documentation
Optional equipment

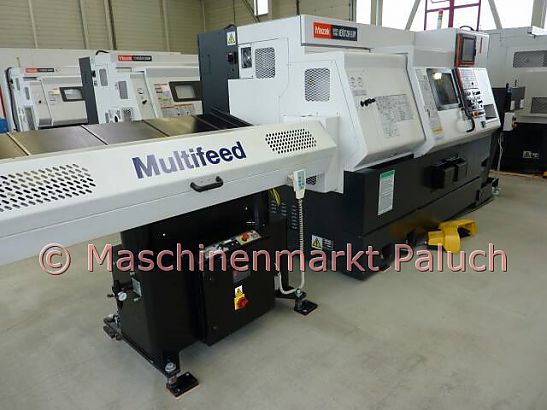

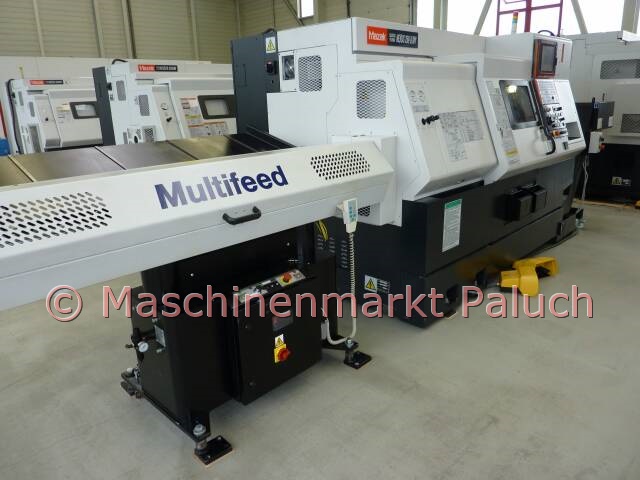

- Barfeeder, Model: Multifeed MX-18
- Interface for barfeeder
- Automatic parts catcher
- Processing status indicato
- High pressure coolant
- CROMAR chip conveyor, backward ejection
- 10 pcs fixed tool holders
- 2 pcs driven tool holders
