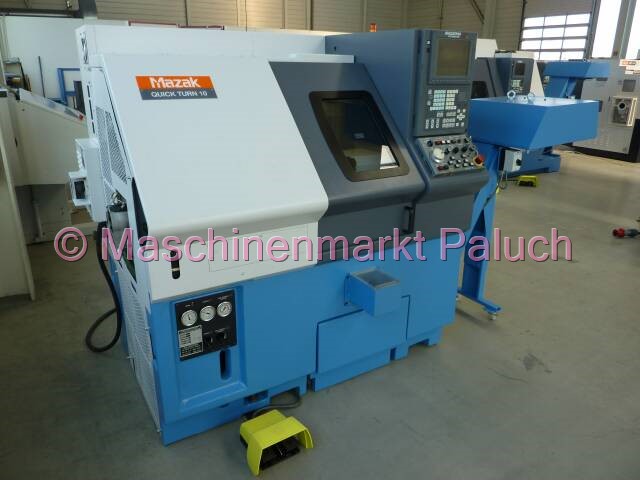

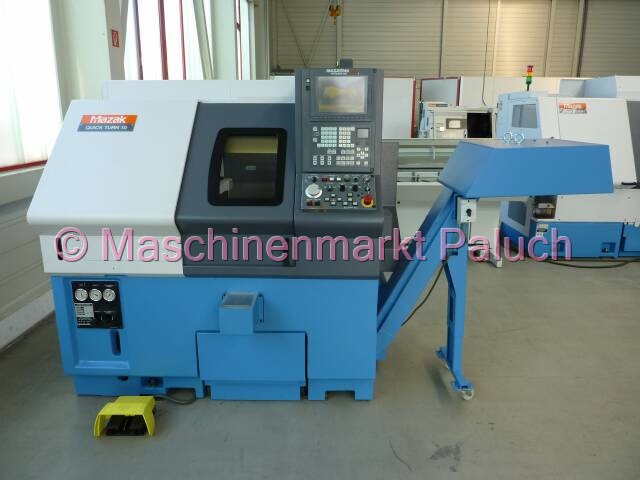

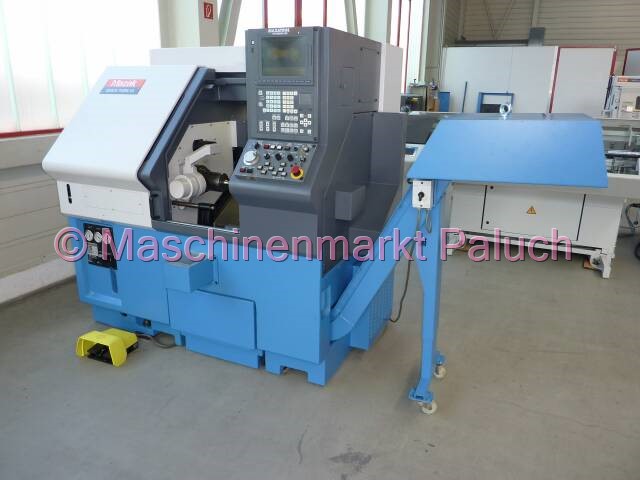

MAZAK Quick Turn N 10 Universal
Inventory Number
1457
Machine Type
CNC-Lathe
Year of Construction
2001
Control

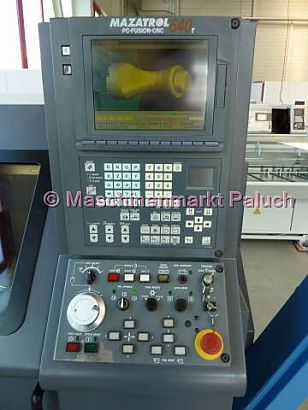

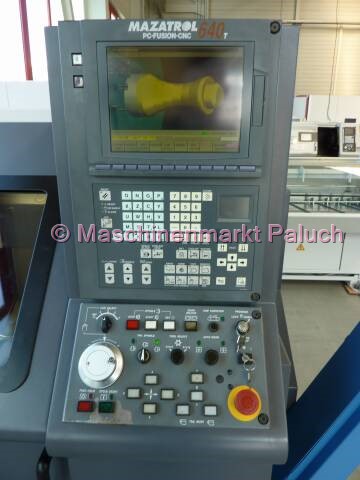

Mazatrol PC Fusion CNC 640T
Technical data
Work-capacity
Max. swing diameter
300
mm
Max. machining diameter
160
mm
Max. machining length
256
mm
Max. bar material diameter
40
mm
Main-spindle
Spindle speed
60-6.000
RPM
Main spindle motor
7,5
kW
Max. torque
96
Nm
Spindle nose
A2 – 5
''
Spindle bore
50
mm

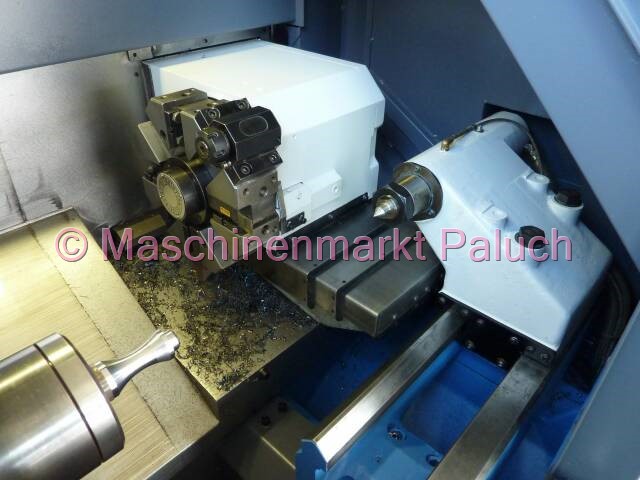

Turret
Turret tool capacity
8
Travel
X-axis stroke
100
mm
Z-axis stroke
290
mm
Feedrate
Rapid traverse rate:
X-axis
30,5
m/min
Z-axis
33
m/min
Cutting feed rate
X/Z-axis
0 - 5.000
mm/min

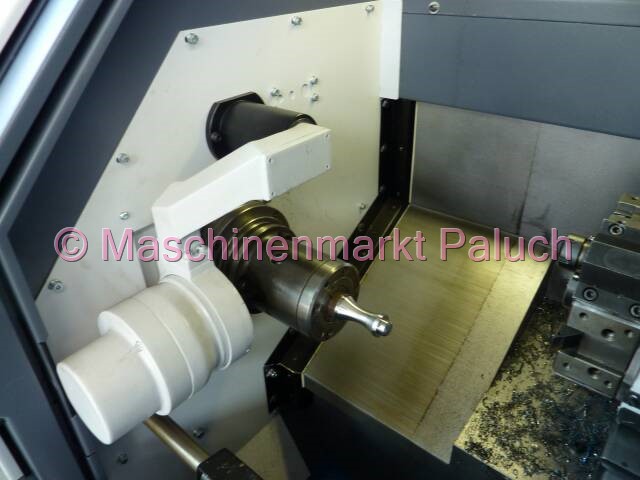

Tailstock
Tailstock quill stroke
95
mm
Tailstock center
MK 4
Tailstock travel
325
mm
Machine-data
Electrical power supply
23
KVA
Machine weight
ca. 2.650
kg
Machine size (L x B x H), approx.
2,00 x 1,35 x 1,92
m
Accessories
Normal equipment
- Hydr. KITAGAWA chuck 173E
- Tool setter (MAZAK Tool Eye System)
- Double foot switch to open/close chuck for main and back spindle
- Chuck status feedback (open/closed)
- Tailstock
- Front door lock
- Toolpath check as background function
- Navigation monitor display
- Compl. Coolant system
- Coolant and chip protection due to fully enclosed workspace
- PCMCIA interface
- Interface for IC memory card
- Interface for MAZATROL DATA TRANSFER
- Documentation
Optional equipment
- Interface for barloader
- Autom. parts catcher
- MAYFRAN chip conveyor
- Many tool holders for 8-speed revolvers
