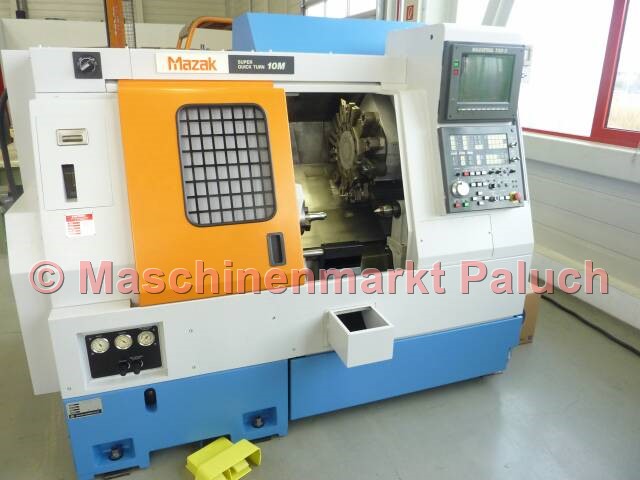

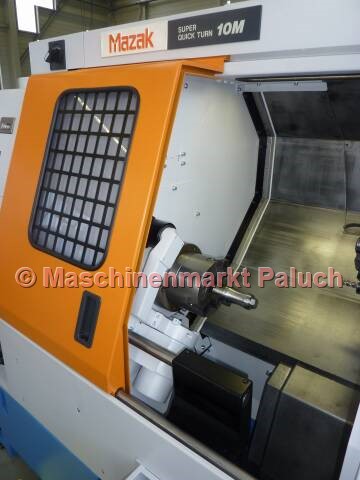

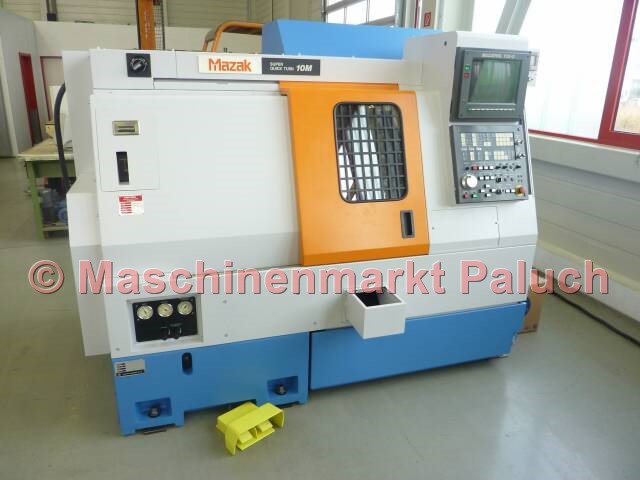

MAZAK Super Quick Turn 10M

Inventory Number
1428
Machine Type
CNC-Lathe
Year of Construction
1991
Control
Mazatrol T – 32/3 mit Farbgrafikbildschirm

Technical data

Work-capacity

Max. swing diameter
435 mm
Max. swing diameter over cross-slides
370 mm
Max. machining diameter
230 mm
Max. machining length
305 mm
Max. bar material diameter
42 mm

Main-spindle

Spindle speed
35-5.000 RPM
Main spindle motor
11 kW
Max. torque
96 Nm
Spindle nose
A2 – 5 ''
Spindle bore
52 mm
Spindle indexing increments
0° – 360°/0,001 °

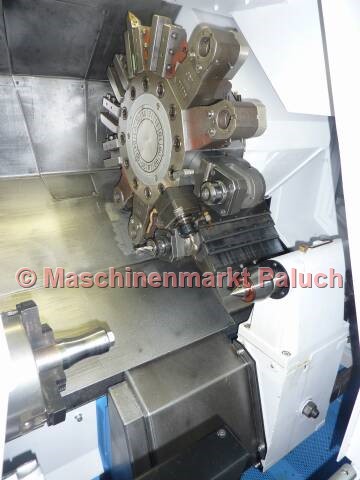

Turret

Turret tool capacity
12

Rotary tools

Spindle speed
120-3.000 RPM
Power
2,2 kW
Max. torque
20,6 Nm

Travel

X-axis stroke
160 mm
Z-axis stroke
360 mm

Feedrate

Rapid traverse rate:
X/Z-axis
30 m/min
C-axis
400 RPM

Cutting feed rate

X/Z-axis
0 - 5.000 mm/min

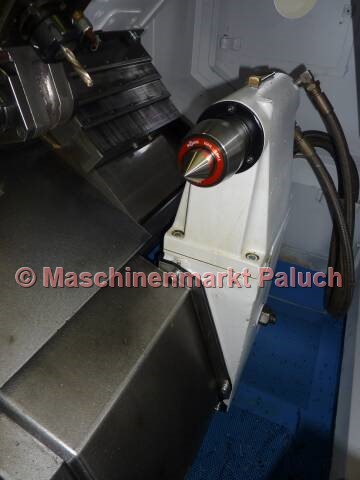

Tailstock

Tailstock quill stroke
75 mm
Tailstock center
MK 4
Tailstock travel
275 mm

Machine-data

Electrical power supply
32 KVA
Machine weight
ca. 3.600 kg
Machine size (L x B x H), approx.
2,50 x 1,50 x 1,90 m

Accessories

Normal equipment

  • Hydr. Kitagawa B-206 chuck, diameter 169 mm
  • Tool setter (MAZAK Tool Eye System)
  • C-axis
  • Double foot switch to open/close the chuck
  • Chuck status feedback (open/closed)
  • Tailstock
  • Front door lock
  • Compl. Coolant system
  • Coolant and chip protection due to fully enclosed workspace
  • Interface for MAZAK Micro Disk and MSK
  • Work area lighting
  • Documentation

Optional equipment

  • Interface for barfeeder
  • Autom. parts catcher
  • Autom. Switching the machine on and off
  • High pressure coolant
  • 9 pieces static tool holders
  • 3 pieces rotary tool holders
