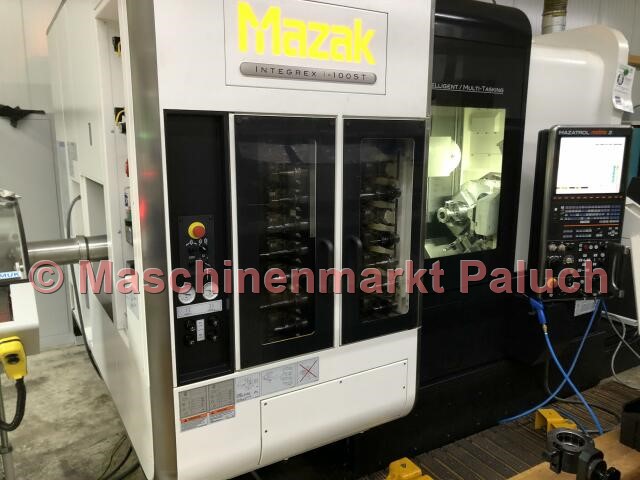

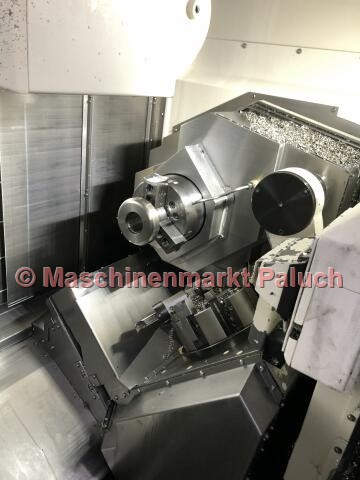

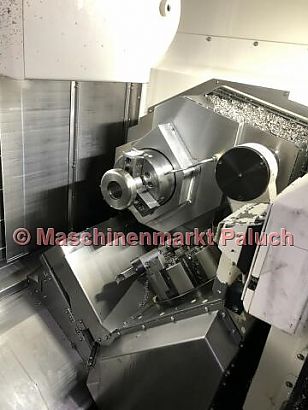

MAZAK Integrex i-100ST

Inventory Number
1506
Machine Type
CNC-Lathe
Year of Construction
2016
Control

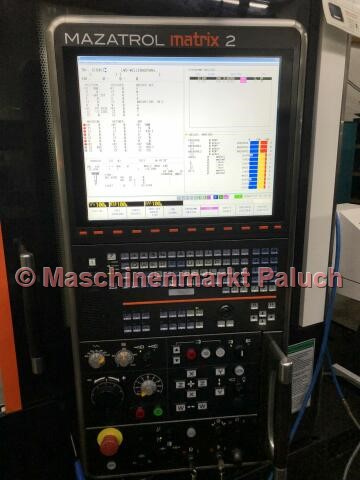

Mazatrol MATRIX II

Technical data

Work-capacity

Max. swing diameter
530 mm
Maximum machining diameter (upper turret)
500 mm
Maximum machining diameter (lower turret)
400 mm
Max. bar material diameter
65 mm
Max. machining length
854 mm

Main-spindle

Spindle speed
35-6.000 RPM
Main spindle motor
11 kW
Max. torque
143 Nm
Spindle nose
A2 – 5 ''
Spindle bore
61 mm
Spindle indexing increments
0,0001 °

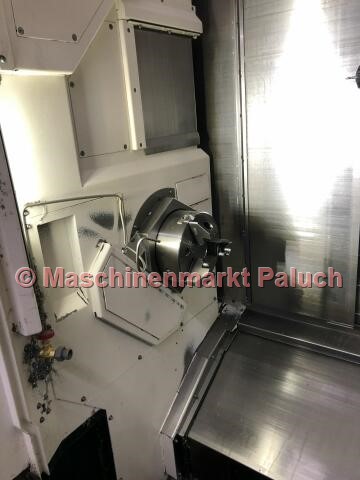

Second-spindle

Spindle speed
35 – 6.000 RPM
Main spindle motor
11 kW
Spindle indexing increments
0,001 °

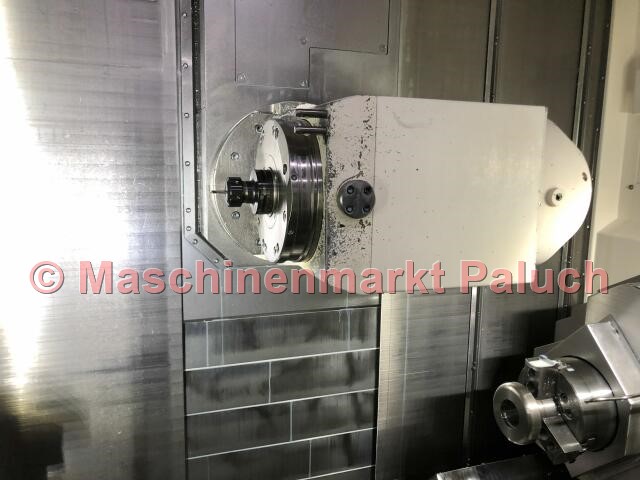

Rotary tools

Type of turning / milling spindle:
Einzelspindel mit ATC
Tool Receiver
CAPTO C6
Spindle speed
35-12.000 RPM
Power
7,5 kW
Max. torque
27,5 Nm

Tool magazine

Turret tool capacity
72
Max. tool weight
4 kg
Max. tool length
250 mm

Lower Turret

Turret tool capacity
9

Travel

X-axis stroke
450 mm
Z-axis stroke
904 mm
Y-axis stroke
+/- 210 mm
X2-axis stroke
220 mm
Z2-axis stroke
903 mm
W-axis stroke
903 mm

Feedrate

Rapid traverse rate:
X-axis
40 m/min
Z-axis
40 m/min
Y-axis
40 m/min
X/X2-axis
40 m/min
Z/Z2-axis
40 m/min
W-axis
30 m/min

Machine-data

Electrical power supply
40 KVA
Machine weight
10.500 kg
Machine size (L x B x H), approx.
2,50 x 3,00 x 2,50 m

Accessories

Normal equipment

  • Hydr. KITAGAWA  hydraulic-chuck for main spindle BB-208, diameter 210 mm
  • Hydr. KITAGAWA  hydraulic-chuck for 2nd spindle BB-208, diameter 210 mm
  • B - axis (0.0001° positioning) in 5 ° steps
  • C - axis main spindle (0.0001 °)
    Y axis
  • Spindle orientation on second spindle
  • Synchronization of the main and counter spindles
  • Double foot switch for opening / closing the chuck for main spindle and 2nd spindle
  • Feedback of the feed state (opened / closed) for main spindle and 2nd spindle
  • Tool presetter (MAZAK Tool Eye System)
  • Front door lock
  • Coolant supply through the milling head
  • complete coolant system
  • Coolant and chip protection through
  • fully enclosed working space
  • Work area lighting
  • User macro (600 variables)
  • MAZAK tapping / drilling cycle
  • Tornado in EIA / ISO
  • EIA / ISO input function
  • Additional EIA / ISO functions
  • Reverse time feed G93
  • Optional stop (optional stop)
  • MAZACC-2D Software Workpiece
  • shape compensation
  • Additional workpiece coordinate systems 300 pieces
  • Tapping Function
  • Polar coordinate input (G122)
  • Drawing data direct input function
  • EIA / ISO drilling cycles
  • CARDBUS interface
  • LAN interface
  • USB interface
  • Active vibration control
  • Intelligent heat shield
  • Intelligent danger shield
  • MAZAK language support
  • Virtual editing
  • Intelligent Maintenance Support
  • documentation

Optional equipment

  • IRCO barfeeder. Modell: ILS-MUK-7016III
  • Tool magazine for 72 tools (CAPTO C6)
  • Main-spindle bar material diameter: 65mm
  • Interface for barfeeder
  • Coolant supply through subspindle
  • High pressure coolant 70 bar
  • Milling spindle synchronized thread cutting
  • Rapid traverse constant inclination angle during movement
  • 5-axis machining basic package
  • Indicator lamp for machining status
  • Subspindle with C - axis
  • Preparation for multiple and flash tool holders
  • Autom. Switching off via circuit breaker tripping
  • Preparation MAZAK Monitoring System B
  • MAYFRAN Chip conveyor
